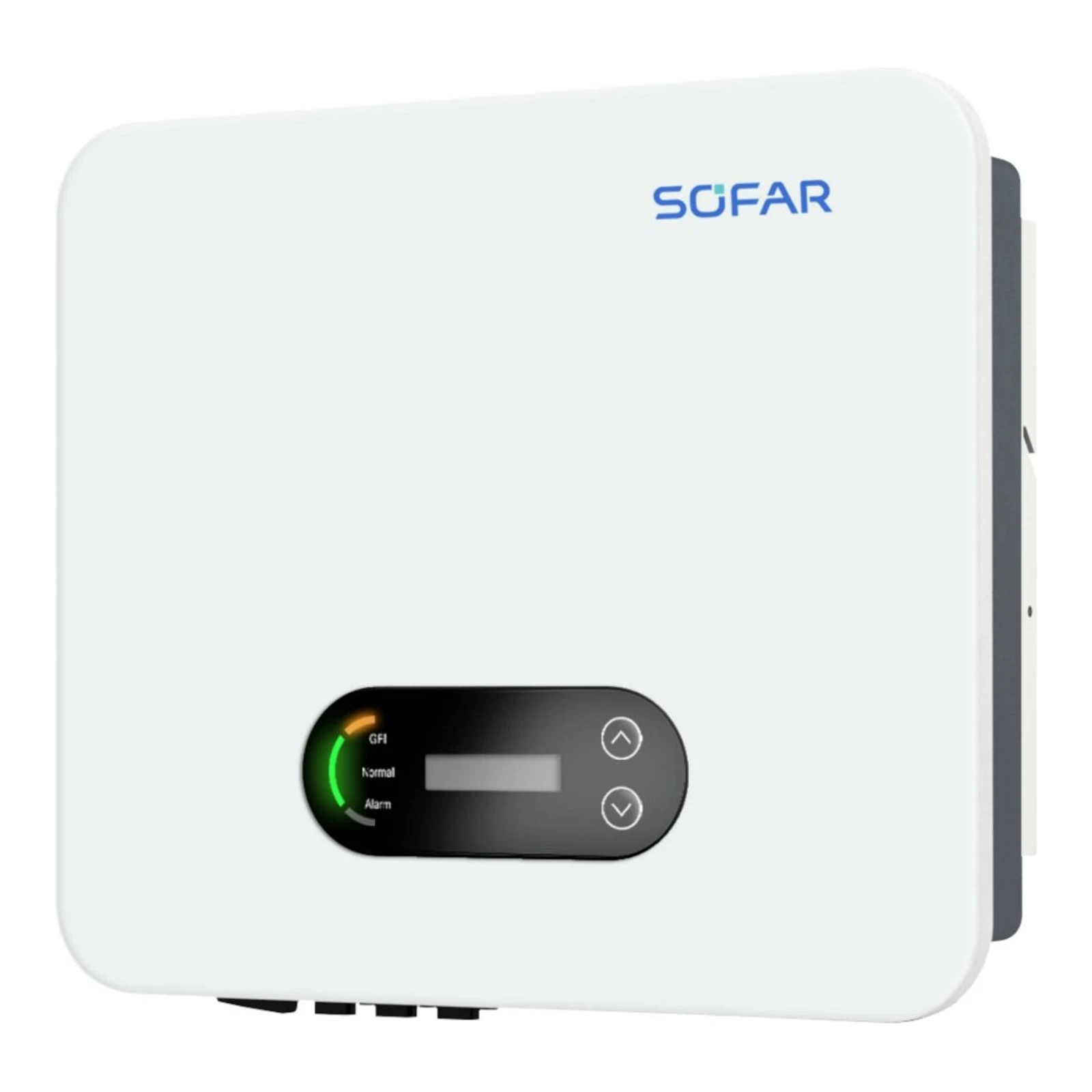

11KTLX-G3 3F Sofar Inverter

11KTLX-G3 3F Sofar Inverter is a three-phase inverter with dual MPPT designed for on-grid installations, with a nominal power corresponding to the 11KTLX-G3 variant. The device supports a maximum PV input power of 15000 Wp and can operate with a high input voltage of up to 1100 VDC, allowing flexible design of photovoltaic strings.

The device is manufactured by SOFAR (SOFAR SOLAR) — a company specialising in inverter solutions for photovoltaic installations. In the documentation, the manufacturer states compliance with international EMC and safety standards as well as a wide range of grid standards, which shows that the product is intended for markets in various countries.

Electrical Parameters

• Max. AC output power: 10000 W
• Max. apparent power (VA): 11000 VA
• Number of MPPTs: 2 (Dual-MPPT)
• Max. DC input voltage: 1100 V
• Recommended max. PV input power: 15000 Wp
• Full-power MPPT voltage range: 420 V - 850 V
• MPPT start-up voltage: 160 V
• Surge protection mode: Type II SPD on DC and AC
• Protection functions: DC reverse polarity protection, anti-islanding protection, leakage current and earth fault monitoring, PV string fault monitoring

Mechanical Parameters

• Protection degree: IP65
• Cooling: natural (no fans)
• Noise: ≤40 dB
• Dimensions (W×H×D): 430 × 385 × 182 mm
• Weight: 18 kg
• Operating temperature range: -30 °C to +60 °C
• Display and local communication: LCD + Bluetooth, app support
