200A Current Transformers for Sofar Smart DTSU666

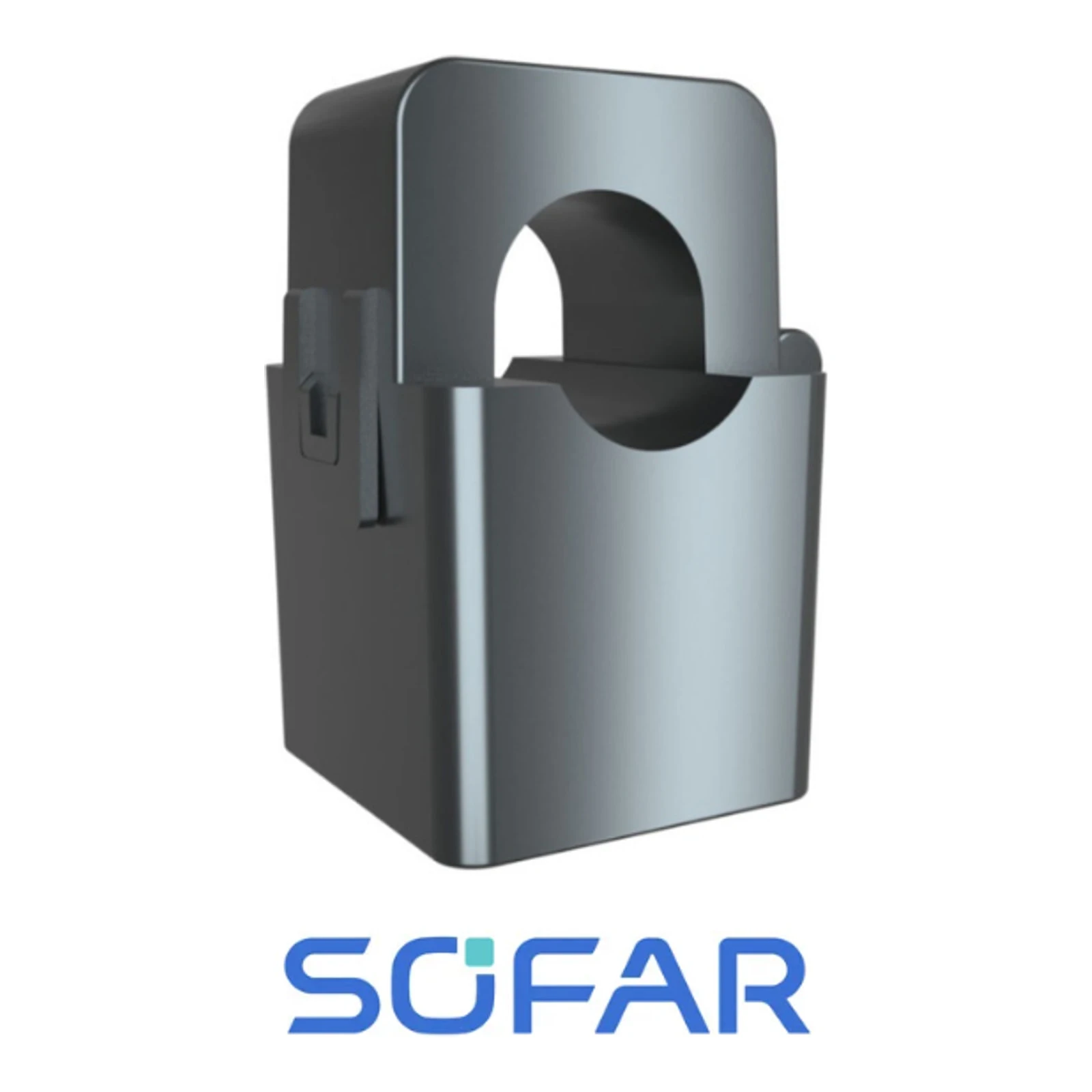

The LCTA9CC 200A/100mA current transformer is designed to work with Chint Smart Meters (DTSU666) as a necessary measurement element when connecting CT. It provides conversion of the primary current of 200 A to a secondary signal of 100 mA, enabling accurate measurement and integration with the inverter's measurement system.

Manufacturer and Compatibility: The transformer described in the catalog sheet is listed as a required element for cooperation with Chint DTSU666 meters used in storage systems and SOFARSOLAR inverters (in the product sheets HYD 3PH and related accessories). The designation used in the documentation: LCTA9CC-200A/100mA.

Electrical Parameters

• Nominal Primary Current: 200 A
• Nominal Secondary Current: 100 mA
• Transformation Ratio: 200 A : 0.1 A (2000:1)
• Application: external current transformer for cooperation with Chint DDSU/DTSU666 meter (CT input)
• Measurement Purpose: current measurements for 1- or 3-phase external meters for SOFARSOLAR inverters

Mechanical Parameters

• Connection Type: toroidal transformer/CT (version CT 200A/100mA mentioned in the documentation)
• Mounting Purpose: external mounting on the phase wire to the CT input of the meter
• Mechanical Compatibility: matched to the CT input of the Chint meter requiring a 100 mA signal
• Catalog Designation in Document: LCTA9CC-200A/100mA
