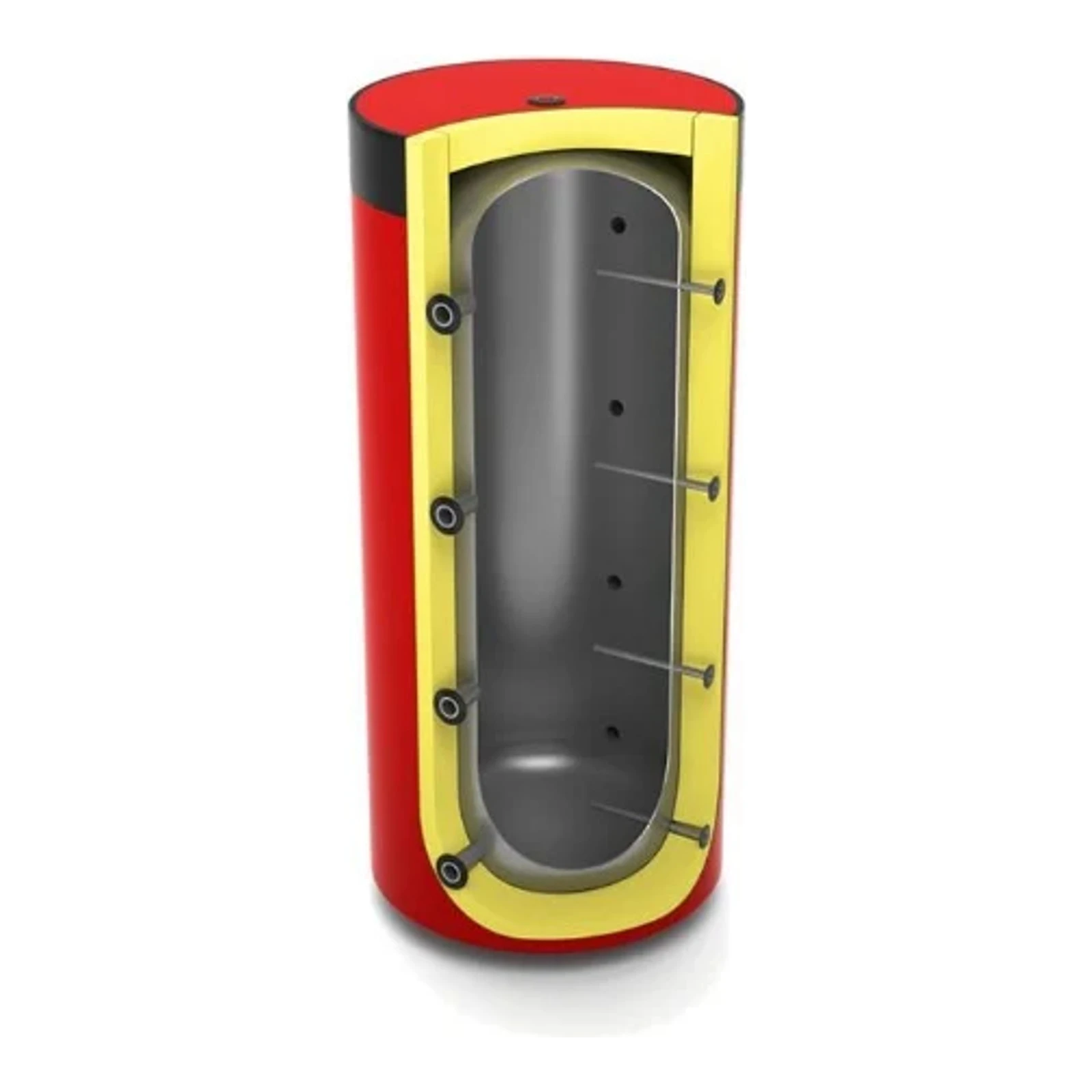

Buffer Tank without Coil 200L

LEMET vertical standing buffer tank 200 L (version without coil) designed for storing hot boiler water and stabilizing the operation of the heating installation. The version with insulation made of polyurethane foam (PUR) and an option for an aesthetic cover.

Manufacturer: LEMET – a company specializing in the production of devices for heating systems. The offer includes buffer storage tanks in various capacities, made of steel with polyurethane insulation and optional fabric covers.

Technical Parameters

• Nominal capacity: 200 L
• Maximum operating temperature: 95 °C
• Maximum working pressure: 3 bar
• Insulation: PUR (polyurethane foam)
• Energy class: C
• Thermometer entry (marked T): G 1/2" W/F
• Connection ports (marked KP): G 6/4" W/F
• Tank venting (marked OZ): G 6/4" W/F

Mechanical Parameters

• Weight: 66 kg
• Dimensions (designations according to the card): A = 1250 mm, B = 1080 mm, C = 600 mm, D = 500 mm, E = 605 mm, F = 190 mm, G = 190 mm, H = 605 mm, I = 1020 mm
• Construction: vertical tank, steel, without coil
• Aesthetic cover: option to use a fabric cover (colours: grey, red, dark blue)
• Installation: standing, side connections according to the markings on the diagram
