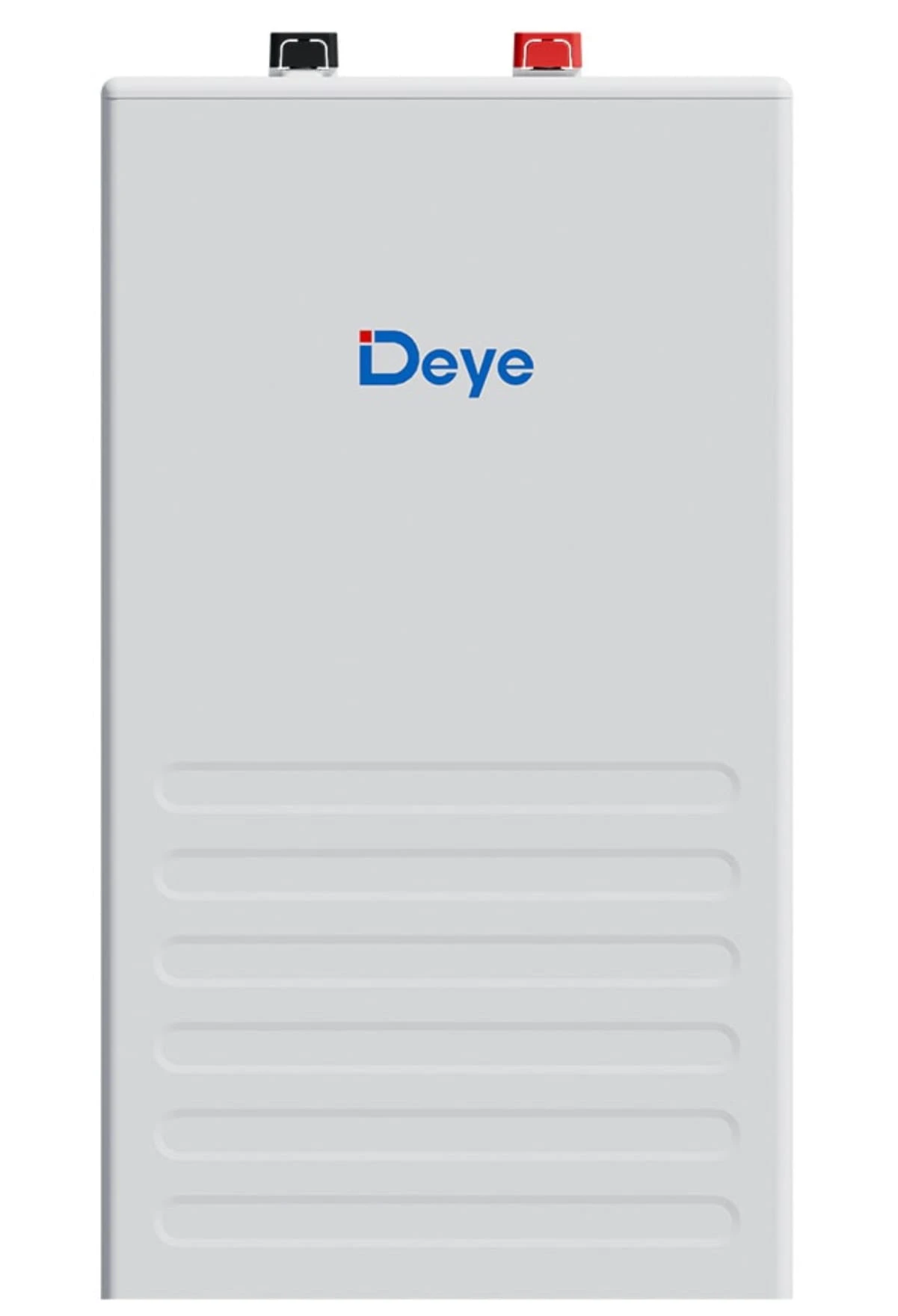

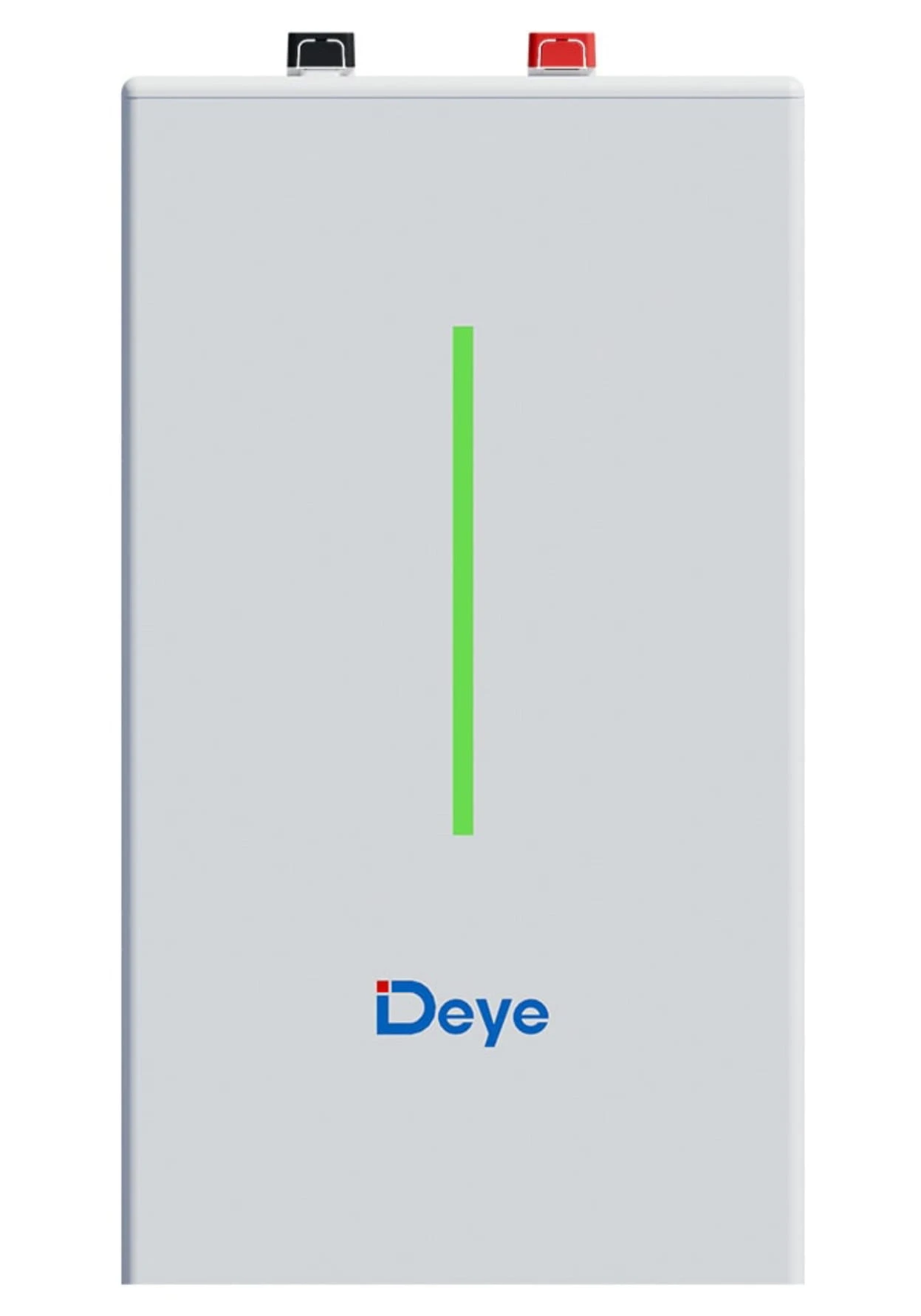

DEYE SE-F16 C– LiFePO₄ 16 kWh energy storage | ESS Low Voltage 51.2V
Product code: ME0264_GB
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping & Returns
Master Energy | Master Investment Sp. z o.o.
1. Right of Return (14 Days)
Individual consumers (B2C) have the right to withdraw from the contract and return purchased items within 14 calendar days from delivery without stating a reason.
2. How to submit a return or claim?
- 📧 E-mail: bok@masterenergy.eu
- 📞 Phone: +48 884 570 201
- 🏢 Registered Address: Master Investment Sp. z o.o., Rondo ONZ 1, 00-124 Warsaw, Poland (VAT ID: PL7010345632)
3. Complete terms and conditions
Detailed freight information, pallet shipping methods, and B2B commercial terms are available at our dedicated information page:
Payment methods
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Product features
Energy storage parameters
- Manufacturer code SE-F16
- Weight 100–200 kg
- Dimensions 400 x 708 x 233 mm
- Capacity 15-20 kWh
- Voltage Low voltage (LV)
- Mounting type Wall-mounted
- Number of cycles 6000-8000
- Capacity [kWh] 16
Description

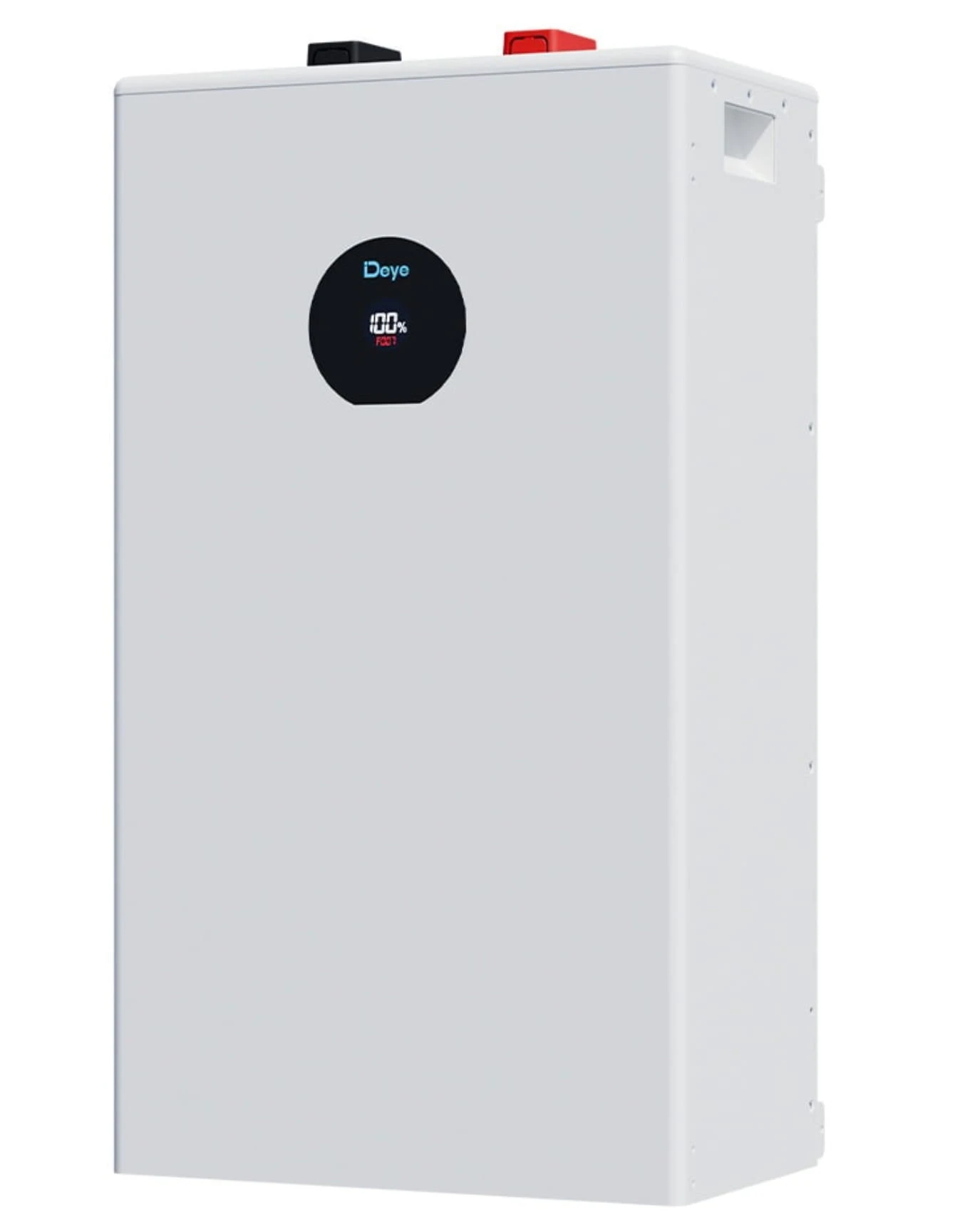

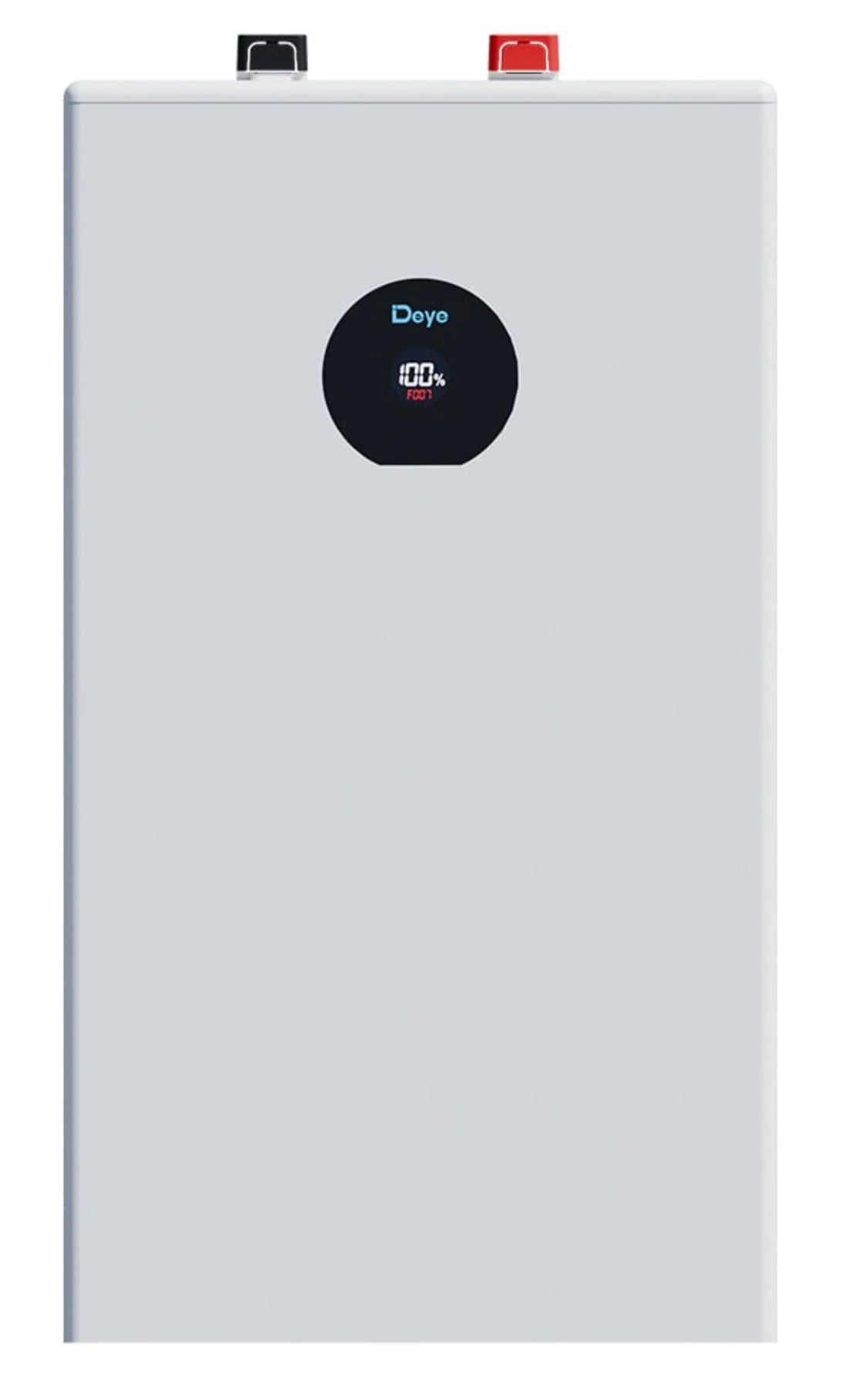

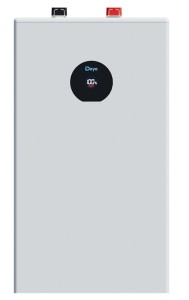

DEYE SE-F16 C (version with LCD display) – LiFePO₄ energy storage 16 kWh | ESS Low Voltage 51.2V
DEYE SE-F16 C is a modern, low-voltage energy storage (ESS) based on LiFePO₄ technology, designed to work with DEYE hybrid inverters and other compatible ESS systems. The solution is dedicated to home installations and small commercial facilities, where reliability, scalability and security are crucial.
Key features
- Nominal capacity: 16 kWh
- System voltage: 51.2V (LV)
- Battery chemistry: LiFePO₄ – high durability and safety
- Recommended DoD: 90%
- Lifespan: ≥ 6000 cycles (25°C, 70% EOL)
- Operation in a wide temperature range: from -20°C to +55°C (discharging)
High efficiency and safety
SE-F16 is equipped with an advanced BMS system with an active fuse that provides full protection against overcharging, excessive discharge, short circuit and overheating. The use of integrated PACK reduces energy losses and improves the energy density of the system.
- Max. discharge current (continuous): 230 A
- Max discharge current (peak): 280 A (10 s)
- Natural cooling - no fans, quiet operation
Scalability and flexible installation
- Up to 32 units in parallel (up to 64 with CAN-Box)
- Possibility to build larger energy banks (clusters)
- Installation: wall, floor or stacked
- Optional transport wheels (SE-F16)
Intelligent communication and monitoring
SE-F16 supports CAN 2.0, RS485 and Bluetooth + application, enabling:
- local battery monitoring (Bluetooth, no Internet),
- remote monitoring of the entire ESS system (battery + inverter),
- fast pairing and software updates.
Application
- energy storage for PV installations (on-grid / off-grid / backup),
- increasing auto consumption,
- emergency power supply (UPS / EPS),
- hybrid systems with DEYE inverters.

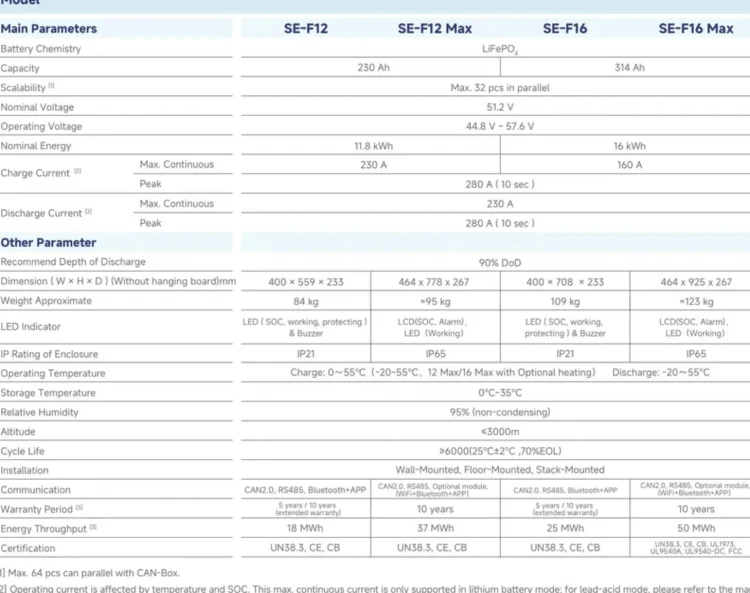

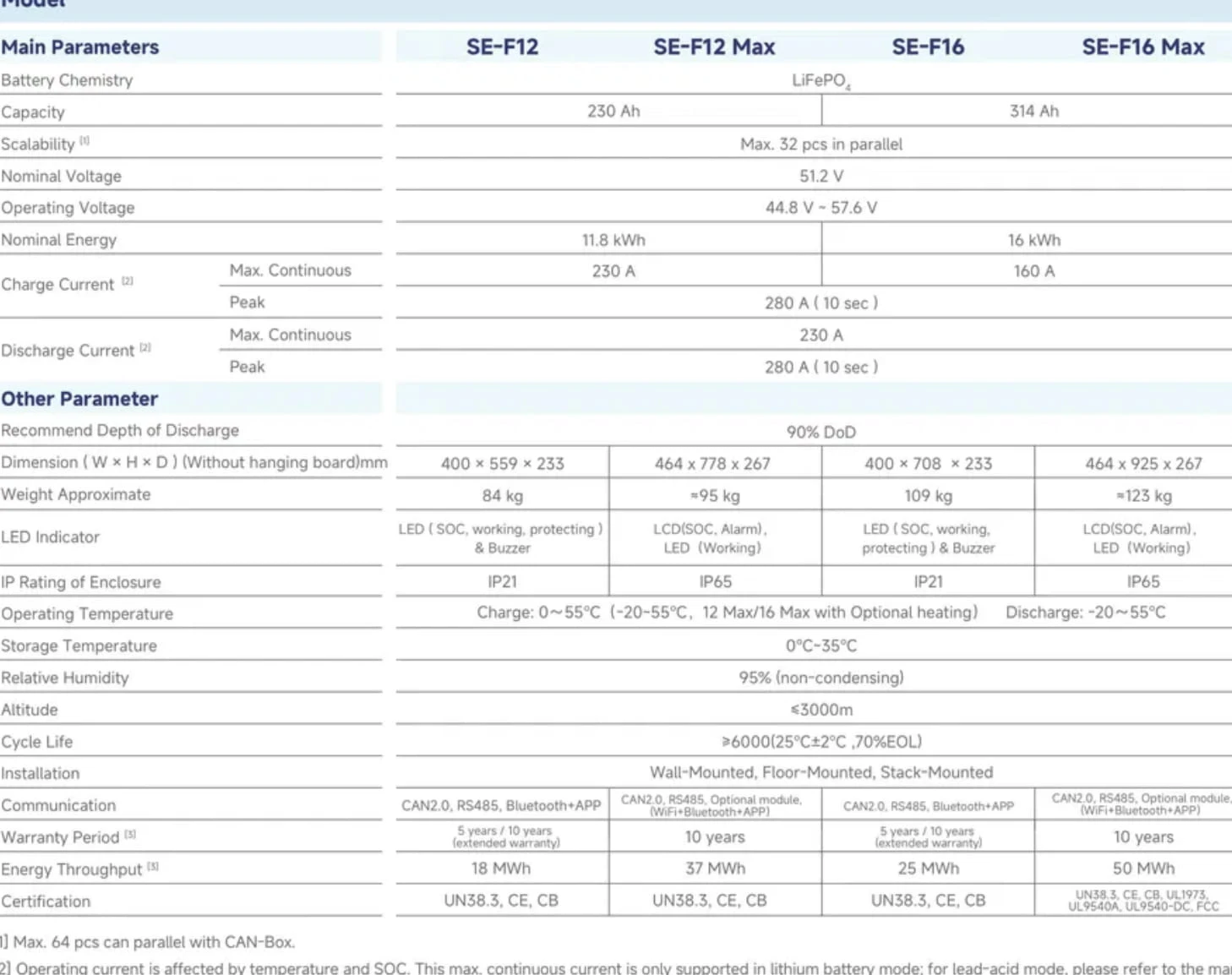

Technical data - abbreviation
- Nominal energy: 16 kWh
- Capacity: 314 Ah
- Dimensions (W × H × D): 400 × 708 × 233 mm
- Weight: approx. 109 kg
- Degree of protection: IP21
- Certificates: UN38.3, MSDS, CE, CB
- Warranty: 10 years / 10 years (extended)
- Energy capacity: up to 25 MWh (according to warranty conditions)
