DYNESS TOWER PRO HV9640 3.84 kWh - Module 1 pc

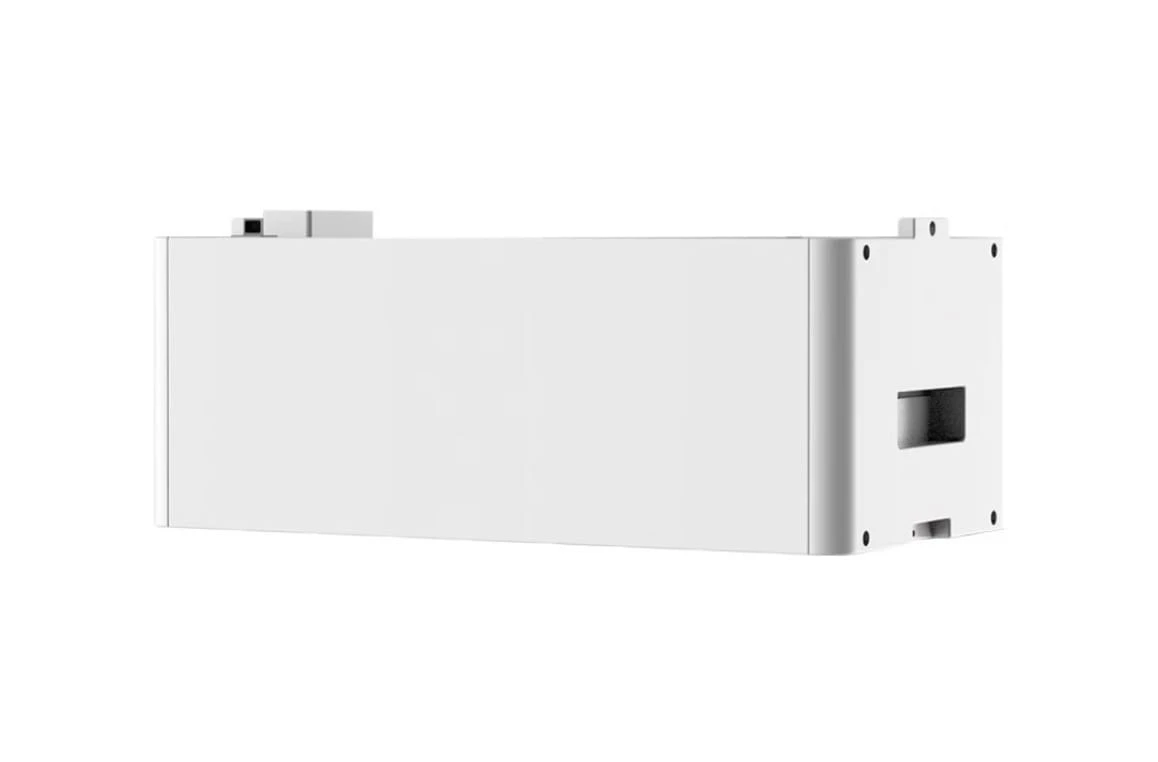

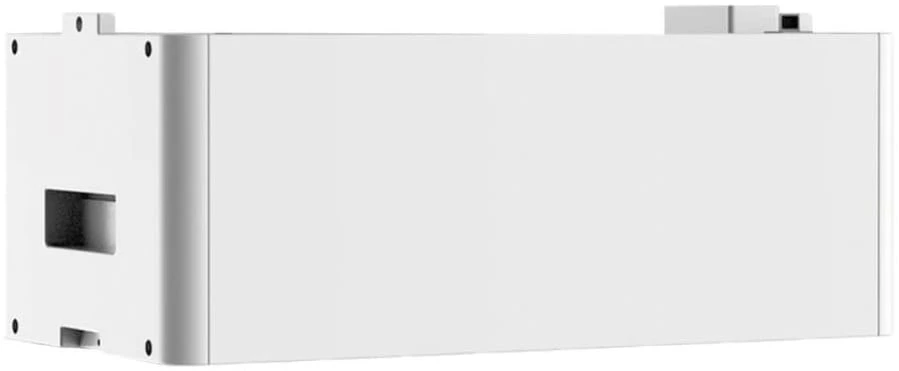

DYNESS Tower Pro HV9640 is a battery module with a nominal energy of 3,84 kWh, designed for the high-voltage Tower Pro energy storage systems. It uses lithium iron phosphate cells LiFePO4 (LFP). The nominal voltage of a single module is 96 V, and the nominal capacity is 40 Ah. The tower design enables system construction and expansion in accordance with manufacturer configurations.

Key features

• Module HV9640 with nominal energy 3,84 kWh for the Dyness Tower Pro system
• Cell technology LiFePO4 (LFP)

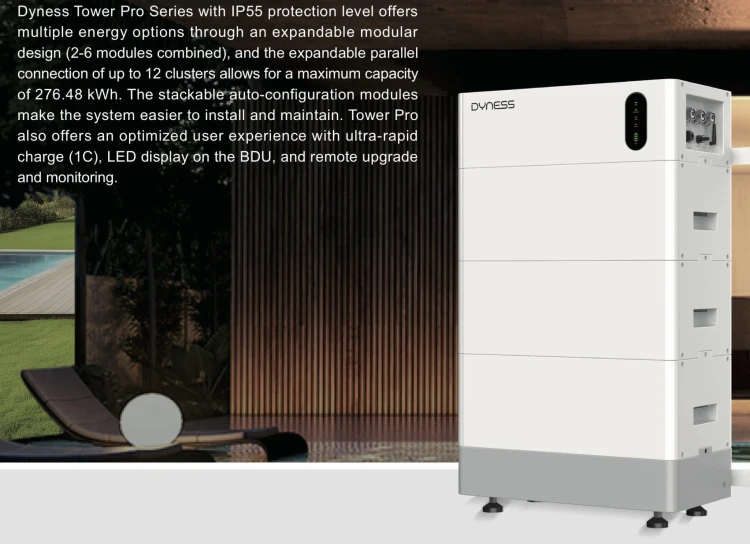

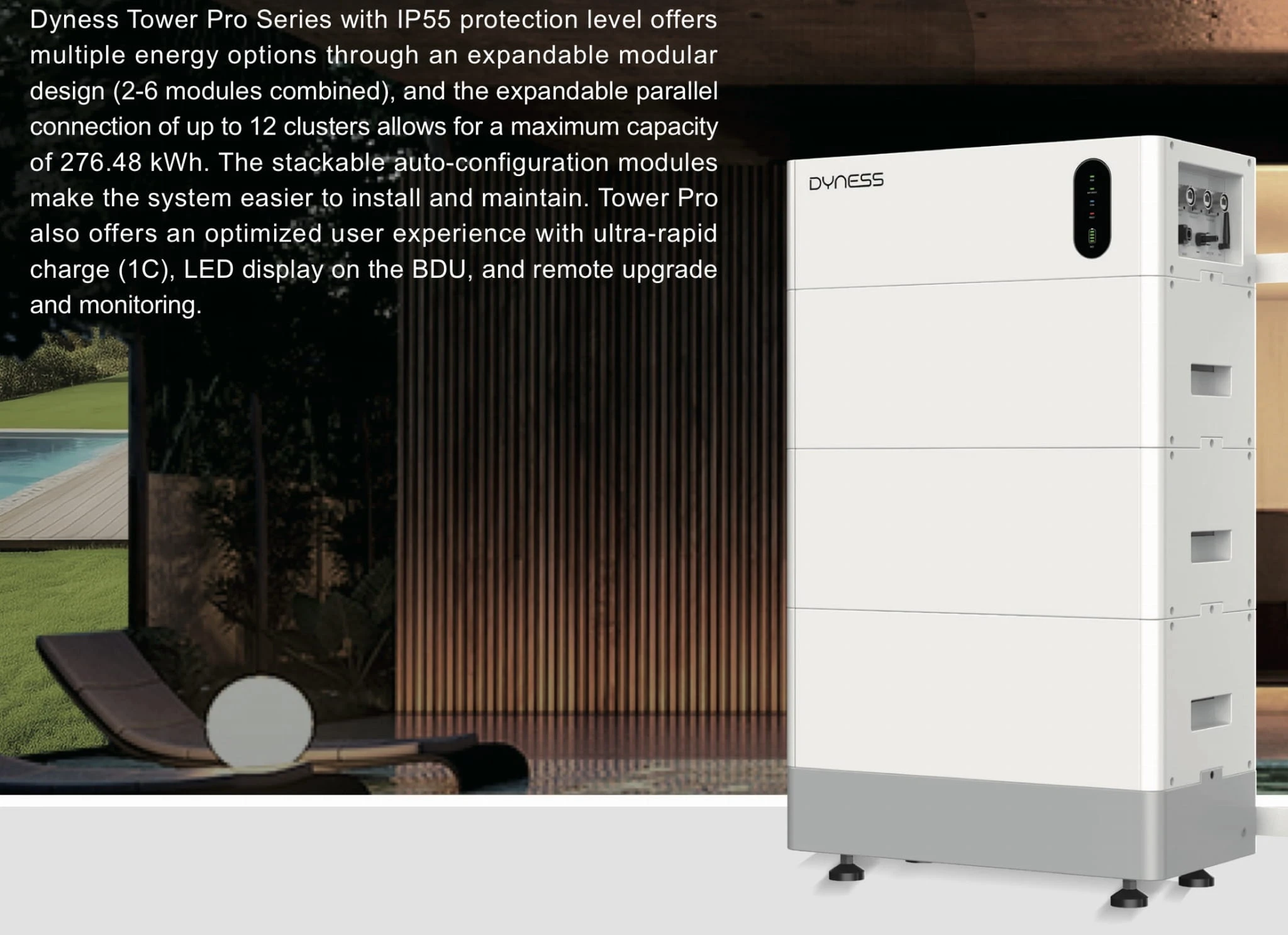

• Tower design with modules stacked one on top of another
• Tower Pro configurations ranging from 2 to 6 battery modules
• Protection degree IP55
• Works with the dedicated Tower Pro control unit BDU

Technical specifications

• Module model: HV9640
• Series: Dyness Tower Pro
• Nominal energy of one module: 3,84 kWh
• Nominal voltage of one module: 96 V DC
• Nominal capacity: 40 Ah
• Cell technology: LiFePO4 (LFP)
• System voltage class: high-voltage (HV)
• Module communication: CAN / RS485
• Protection rating: IP55
• Installation type: tower module (stack)

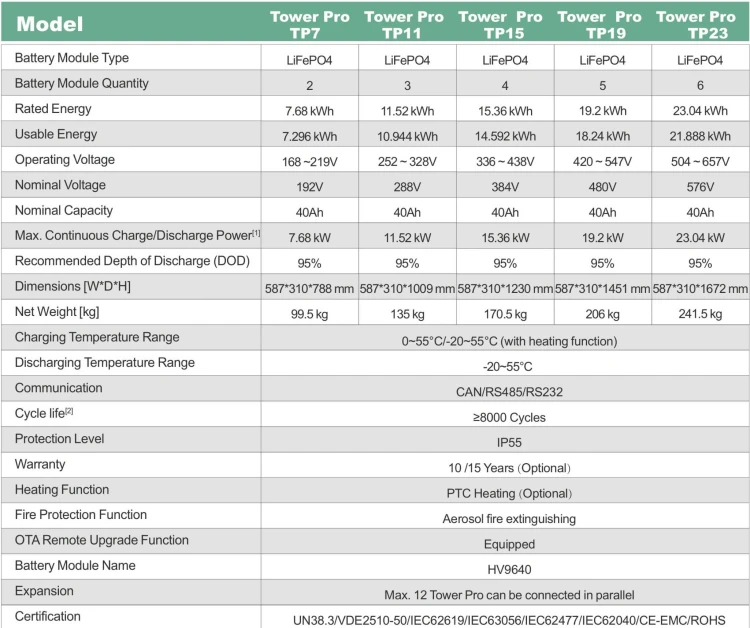

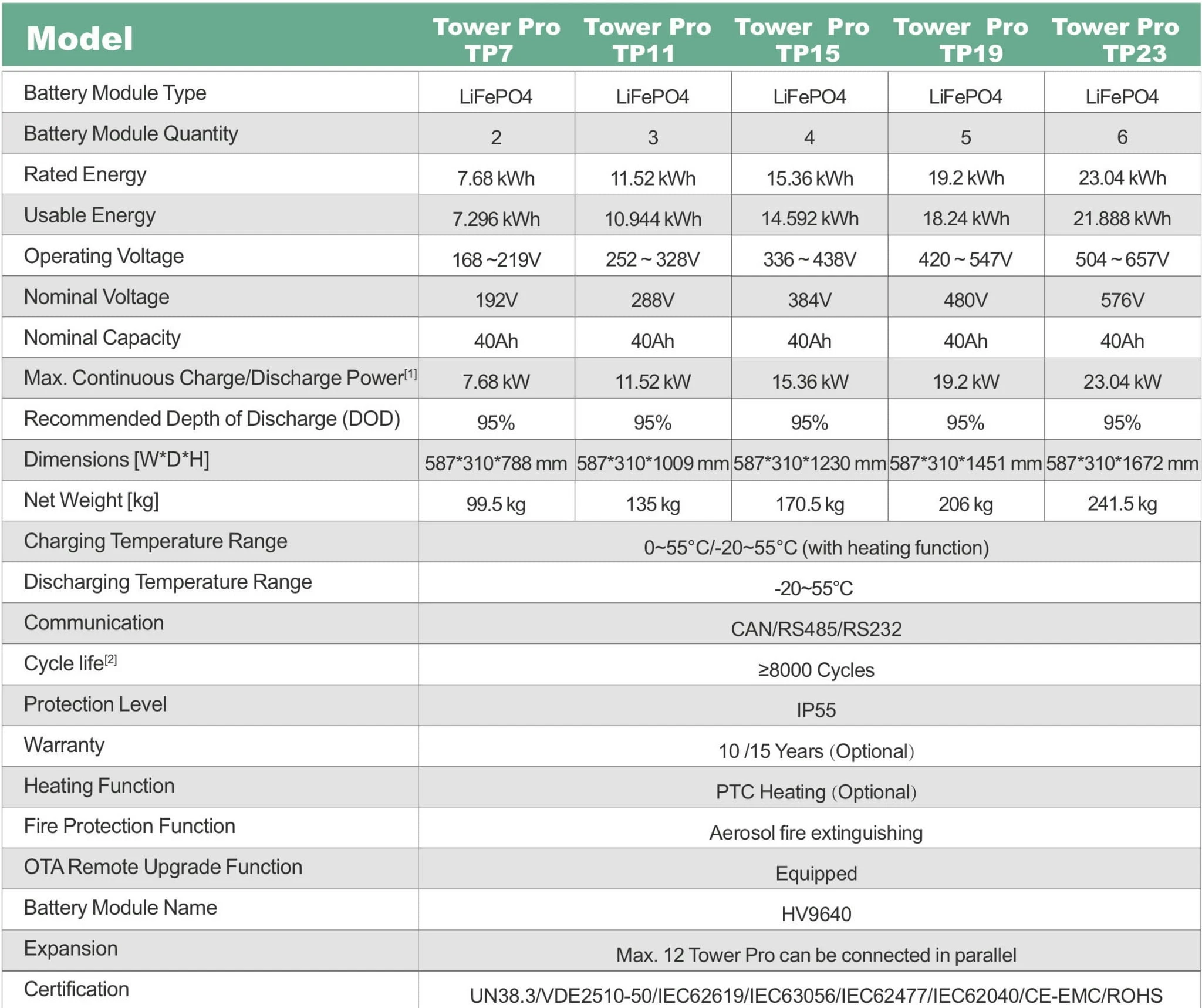

• Configuration range of a single tower: 2–6 modules, from 7,68 to 23,04 kWh nominal energy
• Offered item: 1 piece of battery module HV9640

For operation in an energy storage, the module requires a complete Tower Pro system with the dedicated unit BDU, a base and the number of modules specified in the manufacturer configuration. Inverter compatibility and expansion configuration should be selected according to the Dyness Tower Pro documentation.
