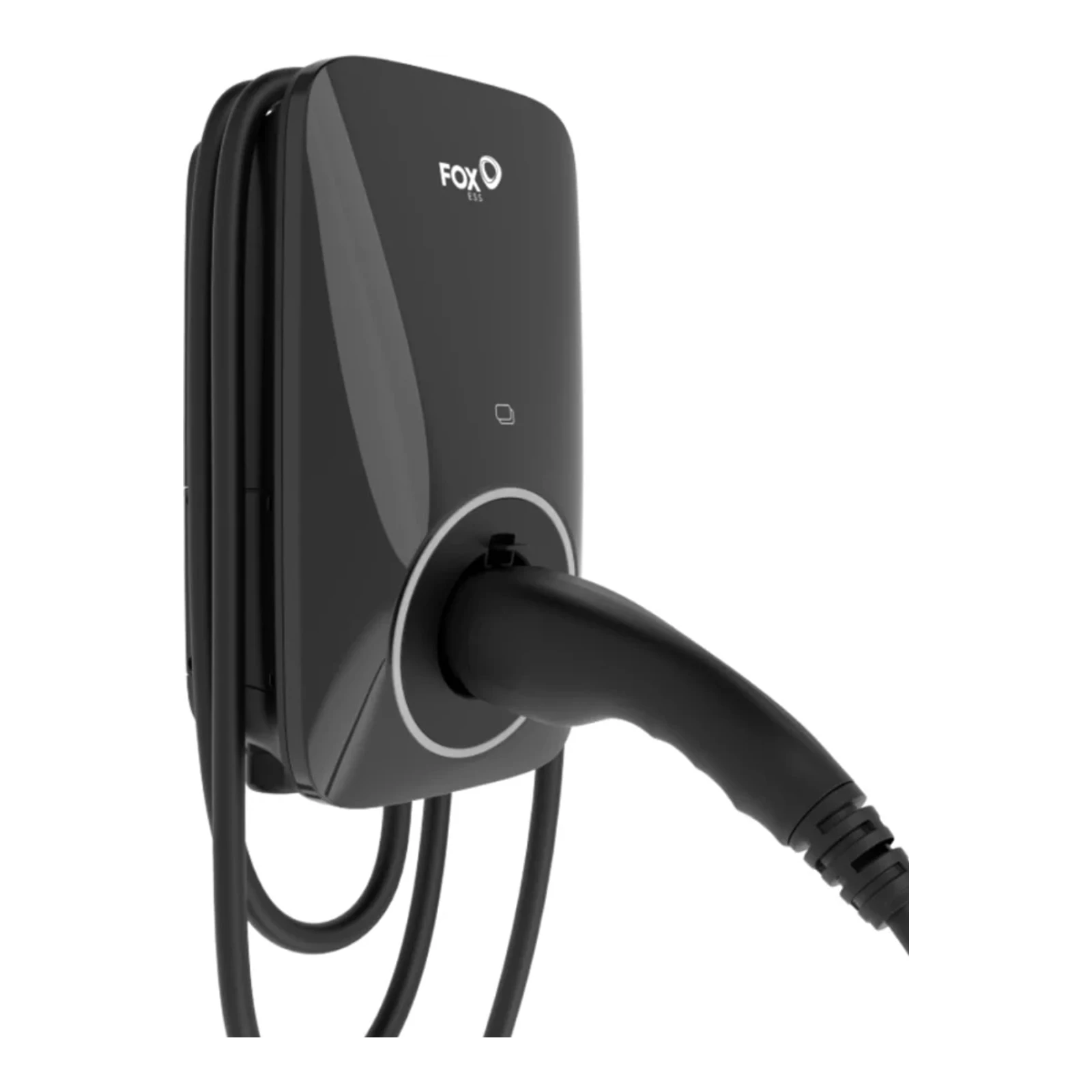

EV Charger FoxESS 22 kW A022KP1-E-B WO

The FoxESS A022KP1-E-B EV charger is a three-phase charging station with a maximum power of 22 kW designed for fast and safe charging of electric vehicles in private and commercial locations. The device supports intelligent communication functions and safety features that protect the installation and the user.

Manufacturer: FoxESS is an international provider of renewable energy solutions and energy storage systems. The company designs and manufactures devices with a focus on integration with photovoltaic systems, compliance with international standards, and extensive network connectivity and communication protocols.

Main electrical parameters

• Max. AC power: 22 kW
• Rated Output AC Current: 32 A
• Wiring diagram: 3L/N/PE (three-phase)
• Input voltage: 400 V ±20%
• Frequency: 50/60 Hz
• Power accuracy: ≤2%
• Standby power consumption: ≤10 W
• Leakage current detection: AC 30 mA + DC 6 mA
• Electrical protections: surge protection, over/under-voltage, overcurrent, leakage, grounding protection, overheating protection, tamper protection, and PEN protection
• Communication with backend and vehicle: Bluetooth, Wi-Fi (2.4 GHz), Ethernet (RJ45), OCPP 1.6 JSON or OCPP 2.0.1, optionally 4G (requires external SIM card), optionally ISO 15118 (V2G hardware-ready)

Mechanical and environmental parameters

• Protection degree (enclosure): Body IP65, Socket IP55
• Impact resistance: IK08
• Operating temperature range: -30 °C to +50 °C
• Storage temperature range: -40 °C to +70 °C
• Operating humidity: 5–95% (non-condensing)
• Operating altitude: < 2000 m
• Mounting method: wall-mount or post-mount
• Cooling: self-cooling
• Certificates and EMC compliance: Class B; CE/CB/UKCA/RCM; compliant with EN/IEC 61851-1:2019 and EN/IEC 61851-21-2:2021
