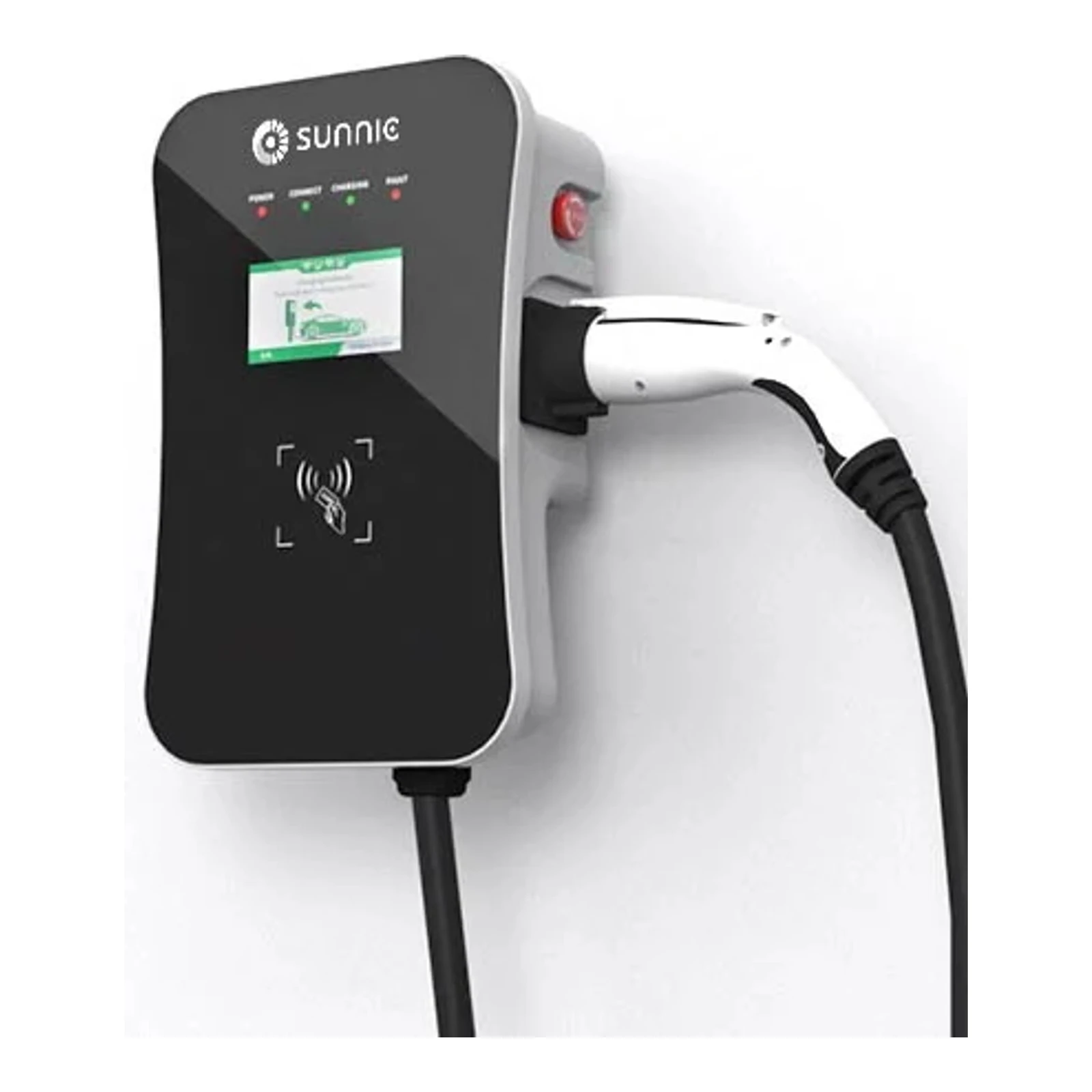

EV Charger SUNNIC SKB-11kW-AC

The SUNNIC SKB-11kW-AC EV charger is a stationary device for charging electric vehicles with a rated power of 11 kW, designed for home and commercial use. This model offers three-phase power supply 3P+N+PE, network communication support, and the necessary safety features for safe and reliable operation.

Manufacturer SUNNIC positions itself as a provider of PBCD (public/basic charging) solutions offering the SKB 7kW/11kW/22kW series. The device has CE certifications and meets the IEC 62196-2 standard (type 2). It is equipped with connectivity features (WiFi standard, Ethernet and 3G/4G as options) and supports the OCPP 1.6 JSON protocol (upgradeable to OCPP 2.0), allowing integration with charging point management systems.

Electrical Parameters

• Rated power: 11 kW
• Power type: 3P+N+PE
• Rated voltage: 400 VAC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Output voltage: 400 VAC
• Maximum current: 16 A
• Charging socket: metal (Type 2)
• RCD protection: 30 mA Type A + 6 mA DC
• Communication protocols: WiFi (standard), Ethernet (optional), 3G/4G (optional), OCPP 1.6 JSON (upgradeable)

Mechanical and Environmental Parameters

• Enclosure: metal
• Front: tempered glass (tempered glass)
• Dimensions (H x W x D): 410 mm x 260 mm x 140 mm
• Net weight: ≤ 11 kg
• Gross weight: ≤ 12 kg
• Protection degree: IP65
• Impact resistance: IK08
• Installation: wall-mounted or pole-mounted (optional)
• Operating temperature: -30 °C to +50 °C
• Operating humidity: 5%–95%
• Operating altitude: < 2000 m
• Warranty: 2 years
