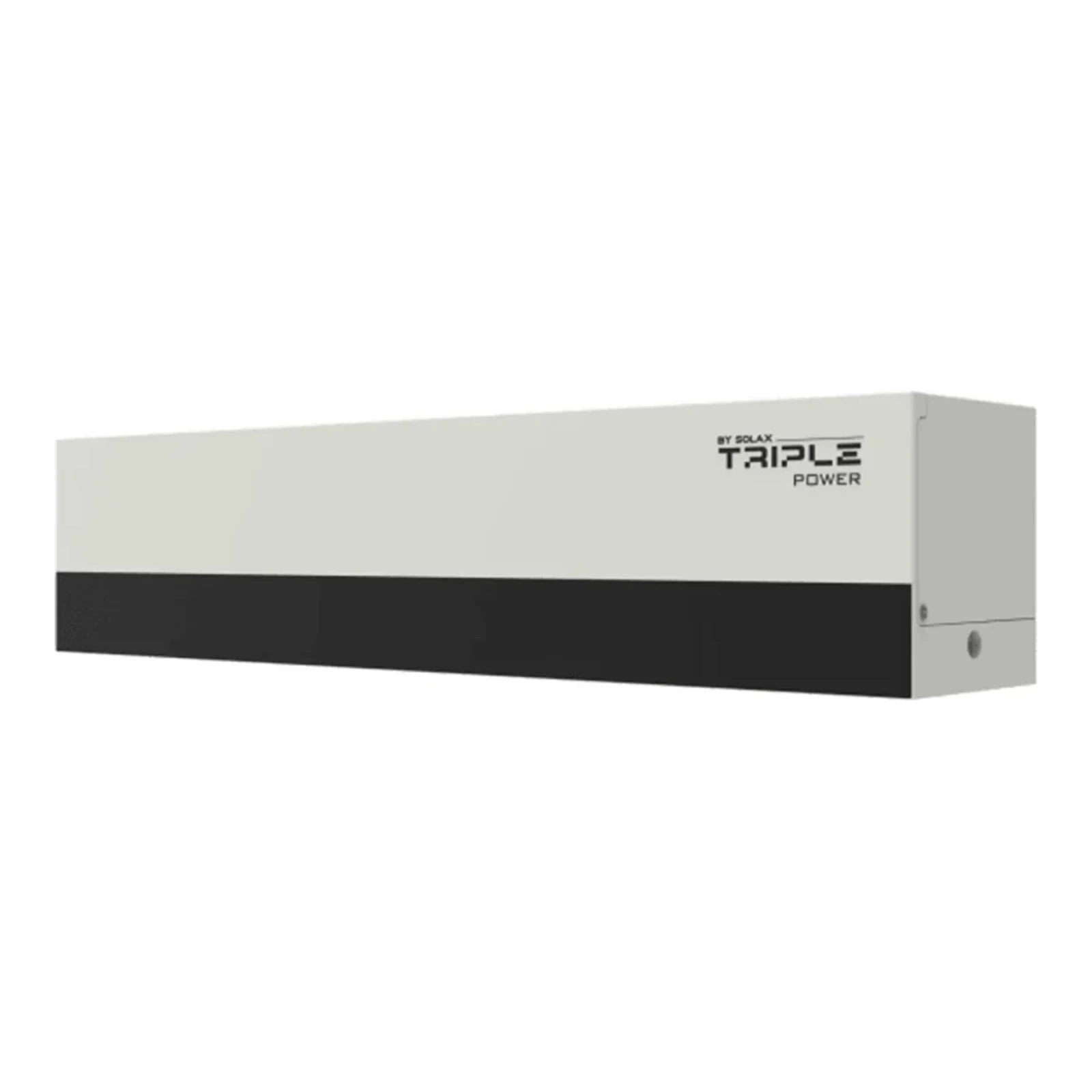

Energy Storage Control Module – SOLAX – TBMS – MCS0800E

The TBMS-MCS0800E control module is a dedicated BMS module designed to work with the SolaX X1-IES energy storage system. It provides monitoring and management of the Li-ion (LFP) battery pack in modular solutions, serving as the central element supervising the operation of the cells and communication with the inverter.

Manufacturer: SolaX Power — an international provider of photovoltaic solutions and energy storage systems, supplying hybrid inverters and modular batteries for residential and commercial use. The company offers complete ESS systems designed for integration with the X-Cloud and supporting VPP functions and off-grid and backup operation modes.

Basic Electrical and Functional Parameters

• Battery voltage range: 80 ~ 480 V
• Communication interfaces: CAN / RS485
• BMS module: TBMS-MCS0800E
• Type of cooperating battery: Li-ion (LFP)
• Cycle life: > 6000 cycles
• Warranty: 10 years
• Safety / certifications: CE, RCM, TUV (IEC62619), RoHS, REACH

Mechanical and Mounting Parameters

• Dimensions (W × H × D): 730 × 165 × 150 mm
• Weight: 9.3 kg
• System composition: TBMS-MCS0800E works with TP-HS50E modules and additional base elements / box series depending on configuration
• Mounting purpose: module for integration into the energy storage system enclosure (column configuration of modules)
