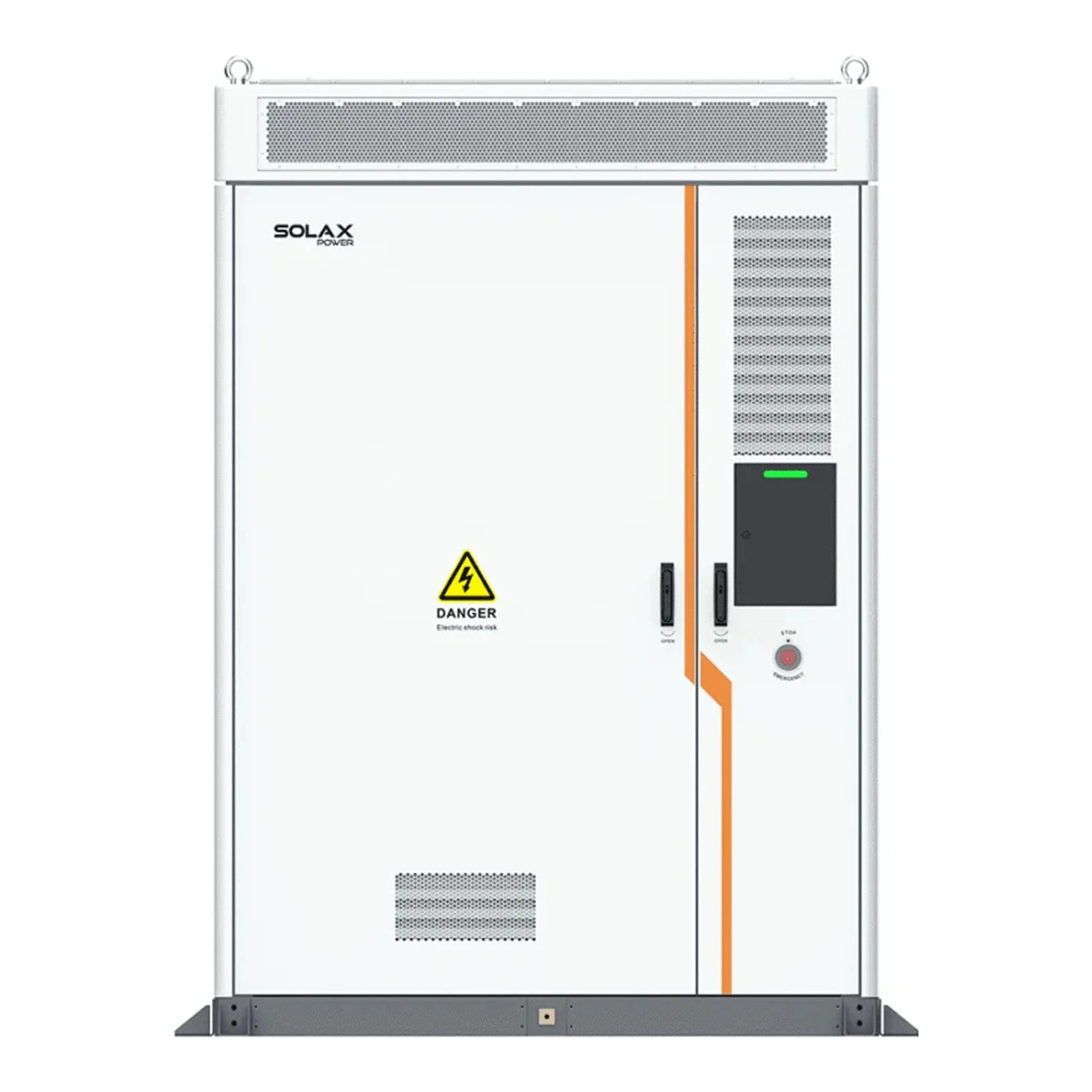

Energy Storage SOLAX TRENE-P100B215

Energy Storage SOLAX TRENE-P100B215 is a standing, air-conditioned ESS unit (AC-coupled) designed for commercial and industrial applications. It provides a nominal power of 100 kW and a battery capacity of 215 kWh, enabling load balancing, storage of excess from PV, and operation in on-grid/off-grid modes with high efficiency.

Manufacturer: Solax Power — a company specializing in energy storage solutions and PV converters. The TRENE model is part of Solax's ESS series, designed for operation in commercial environments with an emphasis on high power density, safety, and integration with energy management systems.

Electrical Parameters and Functionalities

• Output power (AC, nominal): 100 kW
• Max. apparent output power (AC): 110 kVA
• Output current (AC, nominal): 151.9 A (@ 380 V)
• Max. continuous output current (AC): 167.1 A (@ 380 V)
• DC voltage range (battery voltage range): 650 – 876 V
• Battery capacity: 215 kWh
• Battery cell type: LFP (Lithium Iron Phosphate)
• Max. continuous charge/discharge current: 161.8 A
• Maximum efficiency: 98.0%
• Communication interfaces: RS485 / CAN / Ethernet / DI

Mechanical and Environmental Parameters

• Dimensions (L x W x H): 1680 x 2420 x 1200 mm
• Net weight of the system: 2880 kg
• Cooling: intelligent air cooling
• Protection degree (ingress protection): IP55 (cabinet), with IP66 option for some components
• Operating temperature range: -30°C to +55°C (with derating above +45°C)
• Maximum operating altitude: 3000 m above sea level
• Safety configuration: fire suppression systems / water-based fire suppression + ventilation (optional)
