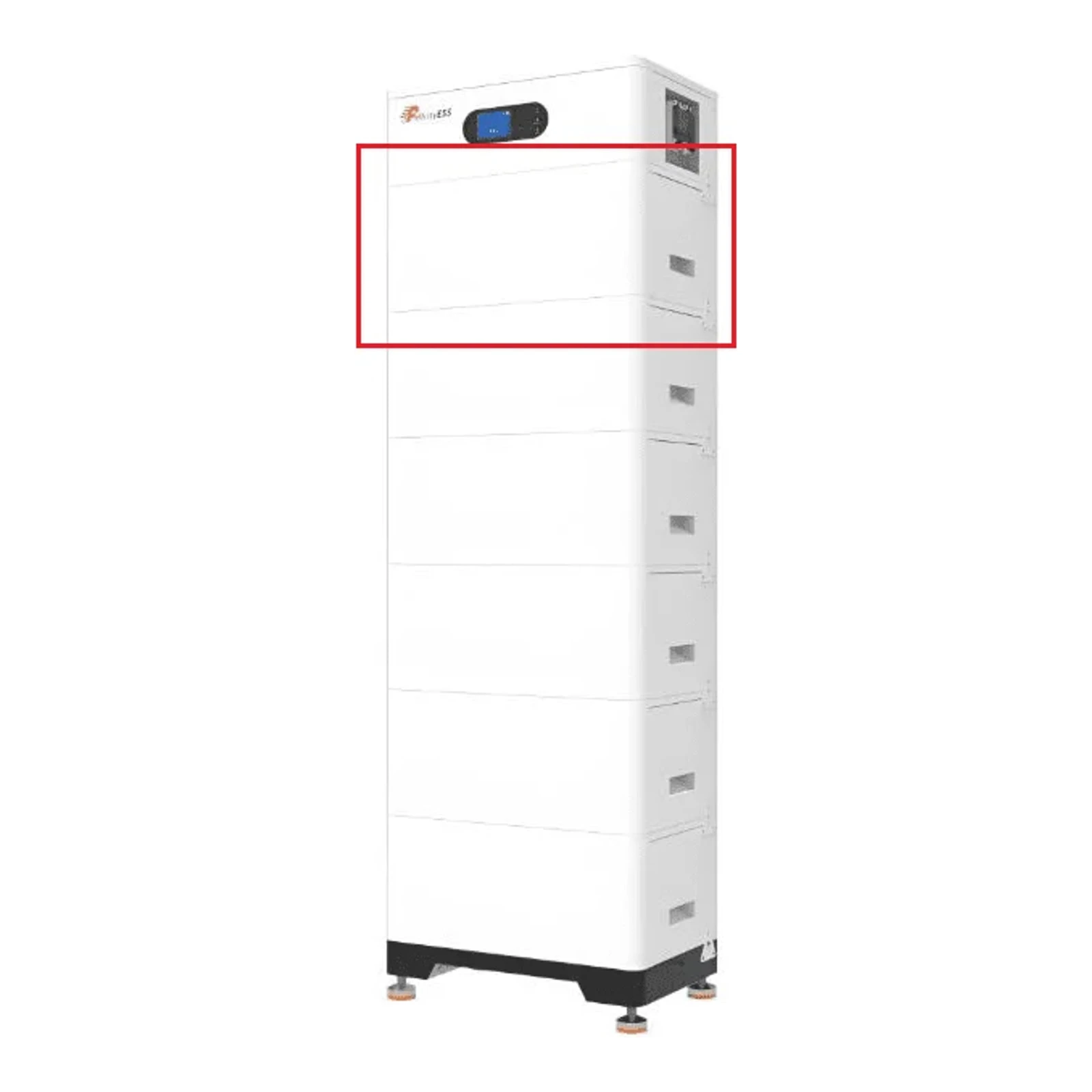

Felicity Battery FLH96050SMG1 5.12kWh 102.4V (IP65) (high voltage)

The Felicity Battery FLH96050SMG1 is a modular LiFePO4 battery with a nominal energy of 5.12 kWh and a nominal voltage of 102.4 V, designed for use as an energy storage solution in photovoltaic and hybrid systems. The device offers high cycle durability, advanced protections, and the ability to integrate with other units in the system.

Manufacturer: Guangzhou Felicity Solar Technology Co., Ltd. specializes in energy storage solutions and solar systems. The company provides modular LiFePO4 batteries with a built-in smart battery management system (BMS), protections, and solutions that facilitate integration with inverters and system expansion.

Electrical and technical parameters

• Cell type: LiFePO4
• Nominal module energy: 5.12 kWh
• Nominal capacity: 50 Ah
• Nominal module voltage: 102.4 V
• Recommended charge/discharge current: 25 A
• Max continuous charge/discharge current: 50 A
• Peak charge/discharge current (15 s): 60 A
• Depth of discharge (DOD): ≥95%
• Life cycle: ≥6000 cycles
• Communication: RS485 / CAN
• Display: LED + LCD (touch)

Mechanical parameters

• Protection degree: IP65
• Product dimensions (WxHxD): 600 x 385 x 260 mm
• Net weight: 57.5 kg
• Gross weight: 62 kg
• Packaging dimensions: 712 x 497 x 378 mm
• Installation: Stacking-mounting / floor-mounting
