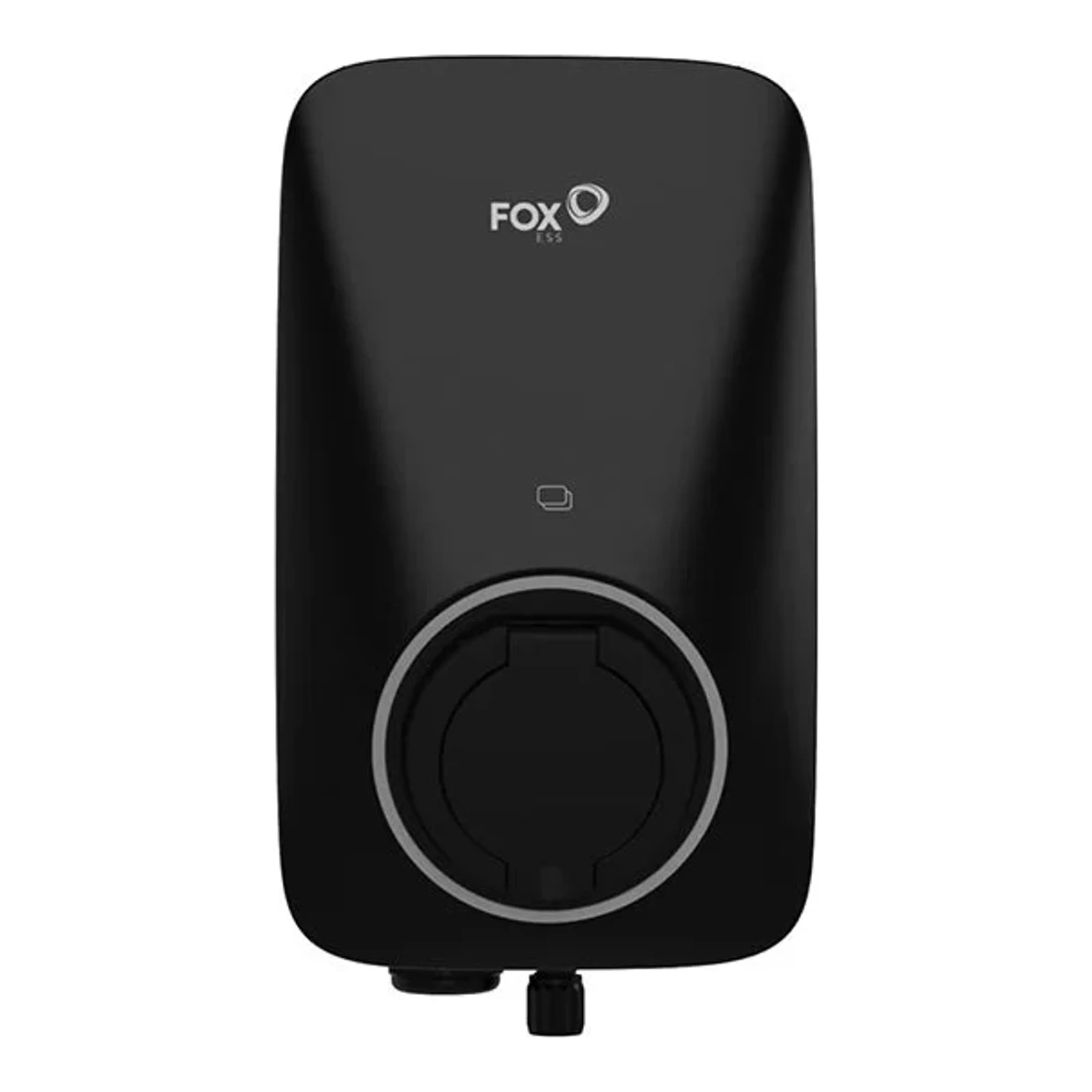

FoxESS EV Charger 22kW (black case)

FoxESS EV Charger 22kW (black case) is a three-phase charging station with a maximum power of 22 kW designed for charging electric vehicles. The device offers authorization modes via RFID card, the ability to schedule charging times, and flexible integration with external energy management systems, including the use of surplus energy from photovoltaic installations.

The manufacturer of the device is FoxESS — a company specializing in energy solutions for photovoltaic installations and energy storage systems. The product has CE, CB, UKCA, and RCM certificates and meets the requirements of standards EN/IEC 61851-1:2019 and EN/IEC 61851-21-2:2021.

Electrical Parameters

• Maximum power: 22 kW
• Nominal current: 32 A
• AC connection type: 3L/N/PE
• Nominal voltage: 400 V AC ±20%
• Nominal frequency: 50/60 Hz
• Power measurement accuracy: ≤2%
• Power consumption in standby mode: ≤10 W
• Electrical protections: over/under voltage, overcurrent, leakage current, grounding, surges, overheating, sabotage, PEN protection
• RCD protection: AC 30 mA + DC 6 mA

Mechanical and Environmental Parameters

• Enclosure protection rating: IP65 (socket IP55)
• Mechanical resistance: IK08
• Cooling: passive
• Communication and authorization: Bluetooth, Wi‑Fi 2.4 GHz, Ethernet RJ45, optionally 4G LTE (requires external SIM card), RFID reader (Mifare ISO/IEC 14443 A), optional ISO 15118 readiness
• Communication standards: OCPP 1.6 JSON or OCPP 2.0.1, MODBUS interface
• Operating temperature range: -30 °C to +50 °C
• Storage temperature: -40 °C to +70 °C
• Operating humidity: 5–95% (without condensation)
• Operating altitude: <2000 m
• Compatibility with plug/cable: IEC 62196 Type 2 cable / Type 2 socket
