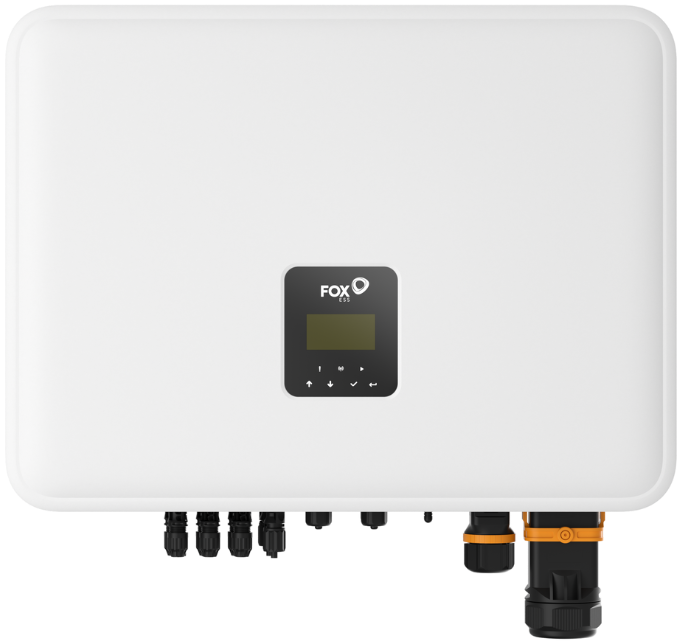

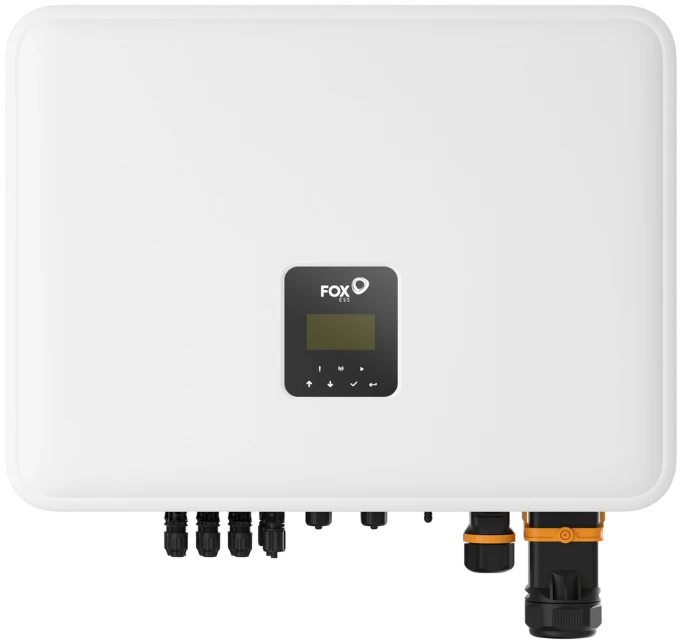

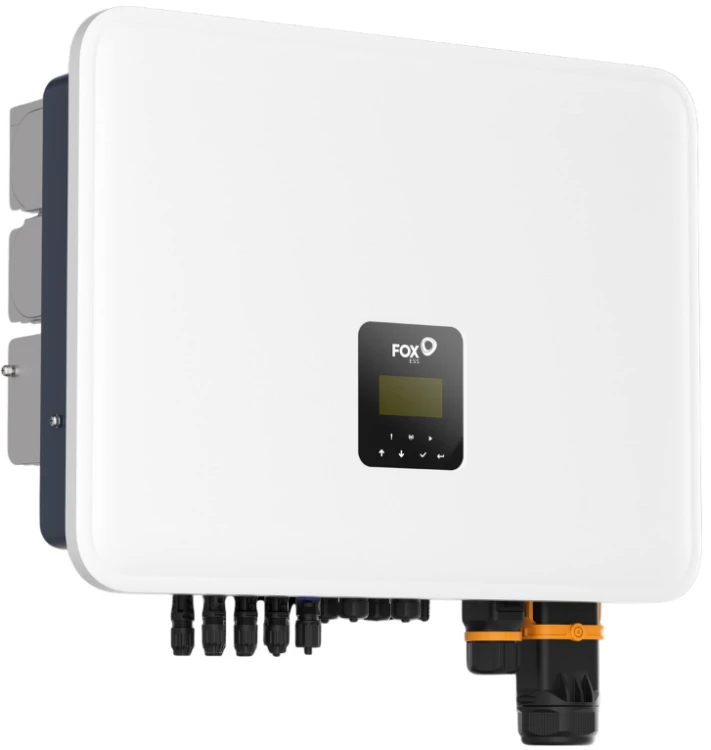

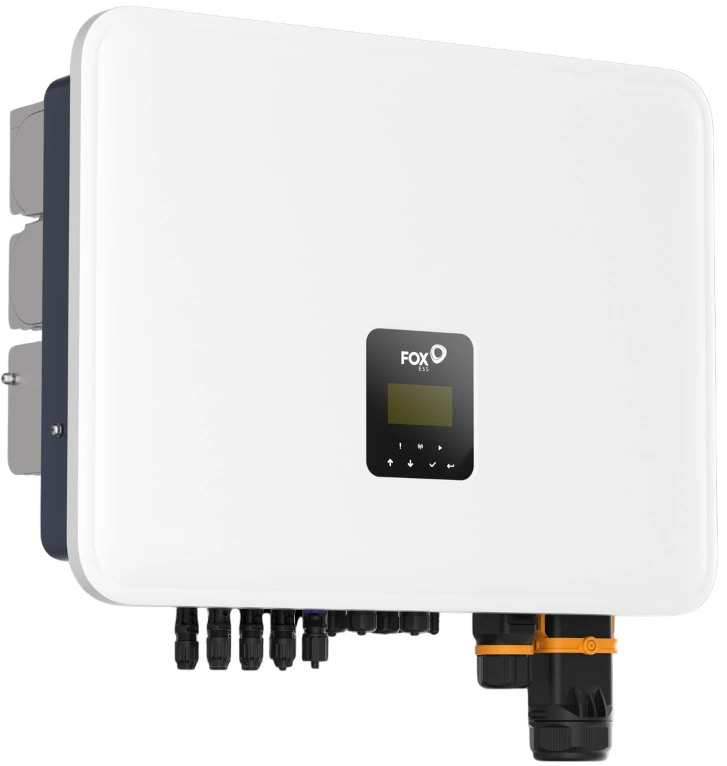

FoxESS P3-5.0-SH

The FoxESS P3-5.0-SH is a three-phase hybrid inverter rated at 5 kW, designed to work with photovoltaic installations and high-voltage batteries. The device enables efficient energy storage and use during peak demand, ensuring reliable and flexible power supply for both residential and commercial consumers.

FoxESS is a brand specialising in advanced solutions for the renewable energy sector. The company develops high-performance inverters, energy storage systems, and monitoring solutions, focusing on quality, safety, and optimising photovoltaic system operation.

Electrical parameters

• Rated output power: 5000 W
• Maximum apparent power: 5500 VA
• Maximum PV input voltage: 1000 V
• MPPT voltage operating range: 120–950 V
• Number of independent MPPTs: 2
• Rated grid voltage (AC): 400/230 V, 3L/N/PE
• Rated grid frequency: 50/60 Hz
• Rated AC current (per phase): 7.6 A
• Maximum AC current (per phase): 8.3 A
• Maximum efficiency: 97.30%

Mechanical parameters

• Dimensions (W×H×D): 600 × 450 × 226 mm
• Packaging dimensions (W×H×D): 665 × 545 × 390 mm
• Net weight: 34 kg
• Gross weight: 40 kg
• Mounting: wall-mounted
• Cooling: natural
• Ingress protection rating: IP65 (suitable for outdoor use)
• Operating temperature range: −25°C ~ +60°C (derating above 45°C)
• Noise level: <40 dB
• Topology: transformerless
