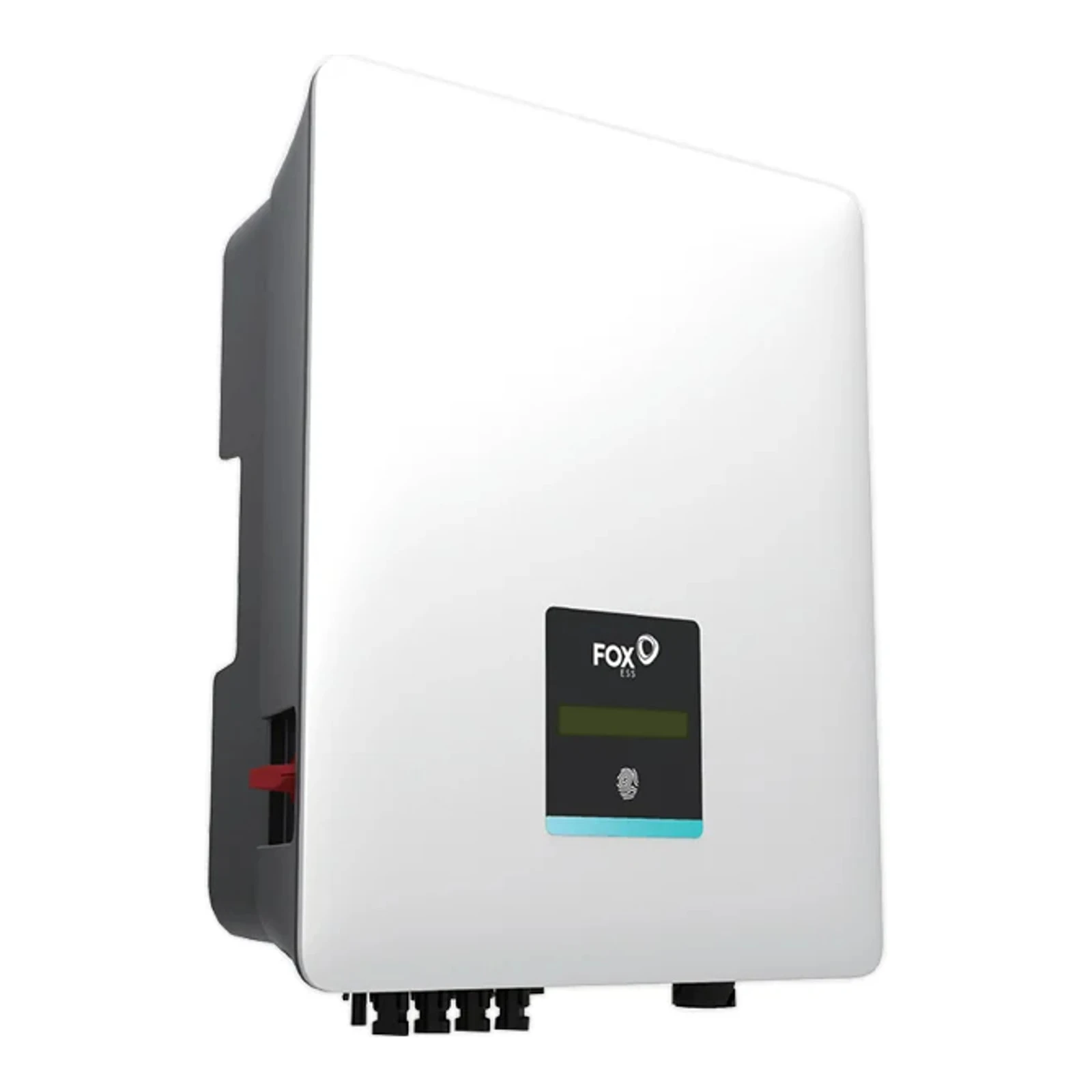

FoxESS T5-G3 Inverter, 2MPPT, Wifi, 3PH, 12-year warranty

FoxESS T5-G3 (5 kW) is a three-phase inverter designed for residential installations and small commercial installations. The T5-G3 version offers a nominal AC power of 5000 W, operates in three phases, and allows for the connection of two MPPT tracks, enabling flexible design of photovoltaic fields and higher energy production.

The manufacturer FoxESS supplies the T (G3) series of inverters, designed for high efficiency and the ability to expand to the FOX energy storage system. The devices feature high efficiency, IP65 protection rating, and connectivity options (RS485, Wi‑Fi/GPRS/4G as options), and comply with international safety and EMC standards.

Electrical Parameters

• Nominal AC Power: 5000 W
• Max. Recommended DC Power: 7500 W
• Max DC Voltage: 1100 V
• Number of MPPT Tracks: 2
• Strings per MPPT: 1+1
• Startup Voltage: 140 V
• Max Efficiency: 98.6 % (maximum efficiency stated for the series)
• MPPT Voltage Range: 140–1000 V
• Input Current (max, typical): 14 A / 14 A (input A / input B)

Mechanical and Environmental Parameters

• Dimensions (SxWxD): 370 × 480 × 183.5 mm
• Net Weight: 17 kg
• Protection Rating: IP65 (outdoor installation possible)
• Cooling: natural (lower power versions)
• Operating Temperature: -25 … +60 °C (derating from +45 °C)
