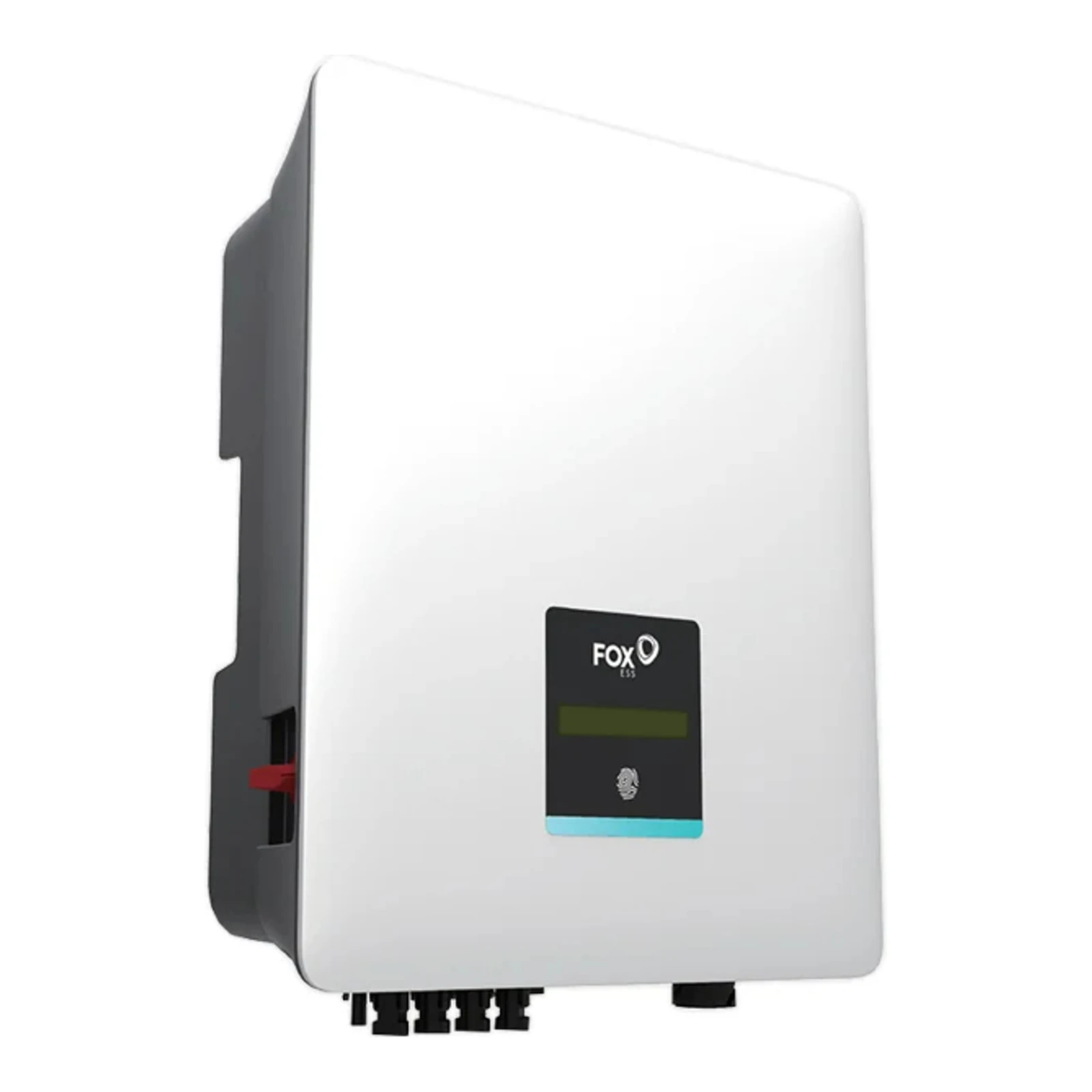

FoxESS T6-G3 Inverter, 2MPPT, Wifi, 3PH, 12-year warranty

FoxESS T6-G3 Inverter is a three-phase inverter with a rated AC power of 6 kW, designed for small and medium photovoltaic installations. Equipped with two MPPTs and Wi‑Fi support, it allows for optimal tracking of the operating points of the panels and remote monitoring via an app and online portal. The device features high efficiency and an IP65 protection rating, allowing for outdoor installation.

The manufacturer FoxESS is a well-known provider of photovoltaic solutions offering the T (G3) series of inverters designed for reliability and flexibility of installation. The company provides multilingual support and a monitoring platform and offers a 12-year warranty on the product, confirming its commitment to quality and long-term technical support.

Electrical Parameters

• Max. Recommended DC Power: 9000 W
• Max DC Voltage: 1100 V
• Nominal DC Operating Voltage: 600 V
• MPPT Voltage Range: 140–1000 V
• Number of MPPTs: 2
• MPPT Inputs: 1+1
• Rated AC Output Power: 6000 W
• Max Apparent AC Power: 6600 VA
• Rated AC Current: 8.7 A
• Max AC Current: 9.6 A
• Grid Frequency: 50/60 Hz (±5%)
• MPPT Efficiency: 99.8%
• European Efficiency: 97.8%
• Max Efficiency: 98.6%
• Compatibility with Power Optimizers: Yes

Mechanical and Environmental Parameters

• Dimensions (WxHxD): 480 × 370 × 183.5 mm
• Weight: 17 kg
• Protection Rating: IP65
• Cooling: Convection
• Operating Temperature: -40 … +70 °C
• Topology: Transformerless
• Communication: RS485, Wi‑Fi (standard), GPRS/4G/LAN (optional)
• User Interface: LCD screen, touch button, mobile app, web portal, menu in Polish
• Warranty: 12 years
