GSV 34 VA4301 6016642 /20pcs./ Mesh Tray Connector

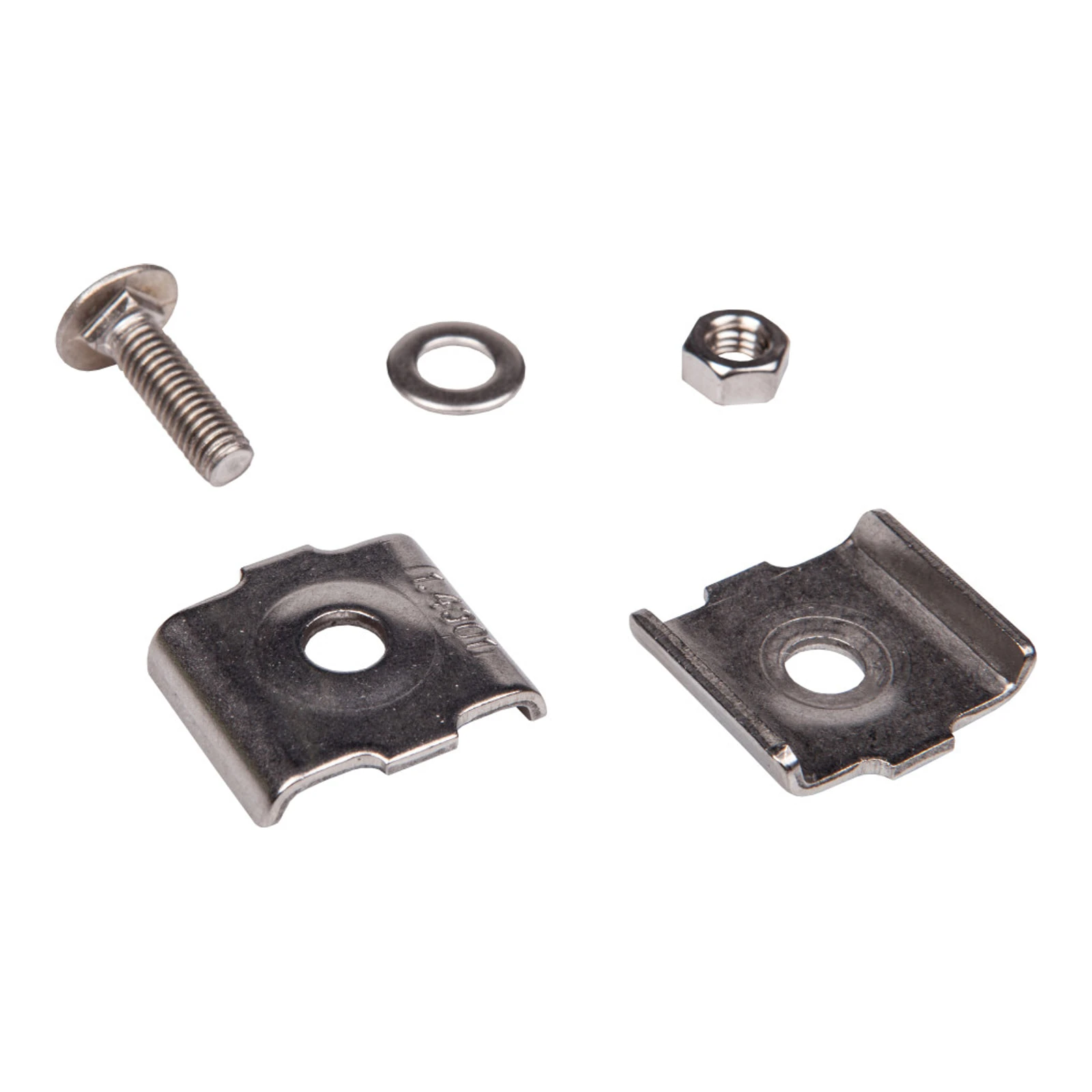

The GSV 34 VA4301 connector is a steel connecting element designed for bolted connections of mesh cable tray segments. It enables simple longitudinal connections as well as connections at vertical exits, bends, T-branches, cross-overs, or reductions, providing a mechanically stable and conductive connection.

Manufacturer: OBO Bettermann – an international supplier of installation systems and fastening elements for cable trays. In the manufacturer's documentation, the element is marked as GSV 34 in version VA4301 (material V2A) and has catalog number 6016642.

Technical Parameters

• Function: bolted connection of mesh trays (straight connection) and connection at exits/bend/T-branch/cross-over/reduction
• Compatibility: suitable for GRM, G-GRM, C-GR tray types
• Nominal Dimensions: 34 x 28 mm (dimensions provided in the accessories table)
• Material: V2A (stainless steel, designation VA4301)
• Manufacturer's Catalog Number: 6016642
• Mounting Element: mounted using a truss-head bolt and nut according to the mounting instructions
• Recommended Number of Connectors: according to the width of the tray – e.g., 2 pcs. for width 50–150 mm, 3 pcs. for 200–300 mm, 4 pcs. for 400 mm, 5 pcs. for 450–600 mm (values resulting from the mounting instructions)

Mechanical Parameters

• External Dimensions: 34 x 28 mm (dimensions provided in the accessories table)
• Surface / Finish: stainless steel V2A (VA4301)
• Connection Type: bolted (truss-head bolt + nut), upper and lower parts of the connector housing
• Mechanical Application: stabilizes overlapping segments of the tray at the junction and secures auxiliary elements (straps, profiles)
• Mechanical and Corrosion Resistance: made of stainless steel V2A, suitable for applications requiring corrosion resistance
