HYUNDAI Wall Air Conditioner 5.3kW CARBON GREY HRP-M18CGI + HRP-M18CGO

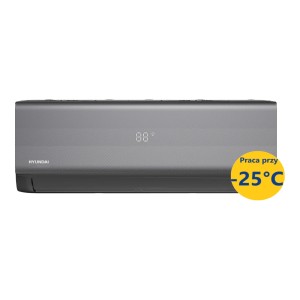

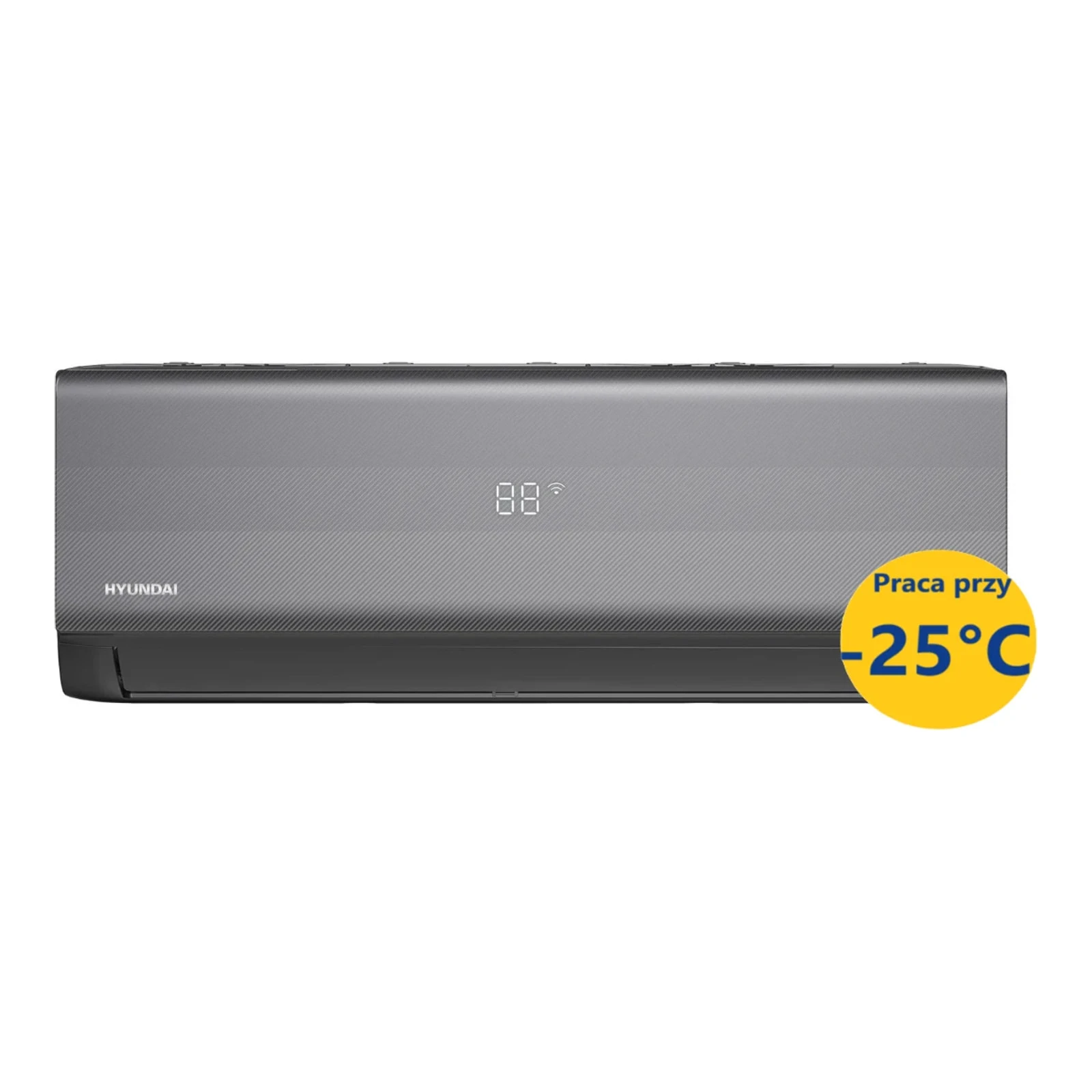

The modern Hyundai Carbon Grey wall air conditioner (HOME Series) with a nominal heating power of 5.3 kW (model HRP-M18CGI + HRP-M18CGO). The device combines a stylish dark grey casing resembling carbon fibre with advanced features: air ionization, multiple filters (catalytic, activated carbon, silver ions), quiet mode at 20 dB(A), WiFi control capability, and operation down to -25°C with the Arktic Kit heating set.

Manufacturer Information

The manufacturer of the device is Hyundai, offering a series of HOME wall air conditioners. Hyundai provides HVAC solutions using R32 refrigerant and features that improve comfort and air quality in rooms, such as intelligent defrosting, auto restart, weekly programming, and advanced filtration systems.

Electrical and Performance Parameters

• Nominal power (heating): 5,568 W (range 1,289 ÷ 7,004 W)
• Nominal power (cooling): 5,275 W (range 1,934 ÷ 6,271 W)
• Power consumption (heating): 1,630 W (range 220 ÷ 2,350 W)
• Power consumption (cooling): 1,550 W (range 150 ÷ 2,250 W)
• Current (heating): 7.1 A (range 0.9 ÷ 10.2 A)
• Current (cooling): 6.7 A (range 0.7 ÷ 9.8 A)
• Operating temperature range: cooling -15 ÷ 50 °C, heating -25 ÷ 30 °C
• SEER / energy class (cooling): 6.5 / A++
• SCOP / energy class (heating): 4.0 / A+
• Refrigerant: R32, 1100 g

Mechanical and Installation Parameters

• Indoor unit - air flow (H/M/L): 800 / 600 / 500 m3/h
• Indoor unit - dimensions (D×W×G): 969 × 320 × 241 mm
• Indoor unit - net weight: 11.2 kg
• Sound pressure level (indoor H/M/L/Q): 41 / 37 / 31 / 20 dB(A)
• Outdoor unit - dimensions (D×W×G): 805 × 554 × 330 mm
• Outdoor unit - net weight: 33.5 kg
• Sound pressure level (outdoor) - max: 57 dB(A); in night mode: 45 dB(A)
• Connection diameters (liquid/gas): 1/4" - 1/2"
• Max. installation length / height difference: 30 / 20 m
• Power supply: 220–240 V / 1~ / 50 Hz; power cable to the outdoor unit: 3 x 1.5 mm²; connection between units: 5 x 1.5 mm²
