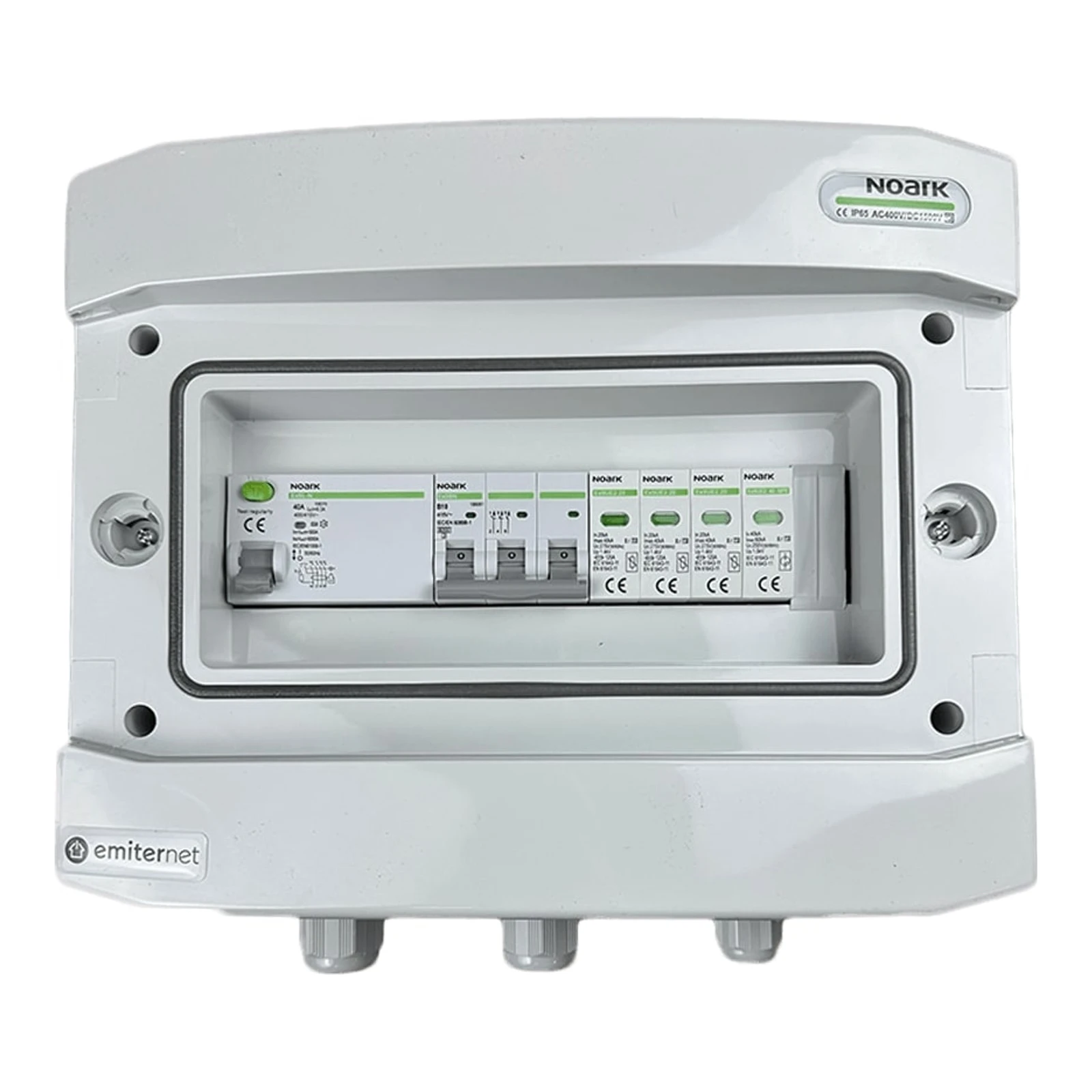

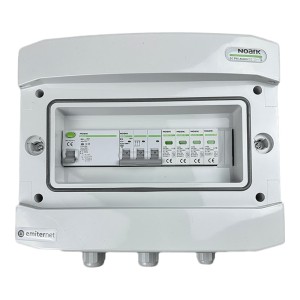

Hermetic AC Connection Distribution Board IP65 EMITER with AC Surge Protector Noark type 2, 10A 3-F, RCD type A 40A\/300mA

The hermetic AC connection distribution board in IP65 enclosure with built-in surge protection and overcurrent and residual current protections, designed for use in PV installations. The model functionally corresponds to the set used to protect the AC side of the inverter: protection against AC surges and shock protection via RCD.

Manufacturer: Noark — electrical components used in KENO/EMITER distribution boards, popular in modular connection distribution boards used in photovoltaic installations.

Electrical/Functional Parameters

• Type of AC surge protector: Noark T2 (type 2)
• Overcurrent breaker: Noark B 10A 3F (1 pc)
• Residual current device: 1 x 300 mA, type A
• Protection degree: IP65
• Rated insulation voltage: 400 V AC, 1500 V DC
• UV resistance: Yes
• Standard warranty: 5 years

Mechanical Parameters

• Enclosure: hermetic (STANDARD series) designed for surface mounting
• Protection class: II
• Impact resistance: IK08 (STANDARD series)
• Operating temperature: -25°C to +60°C (STANDARD series)
• Material: halogen-free plastic; recyclable plastic: halogen-free
