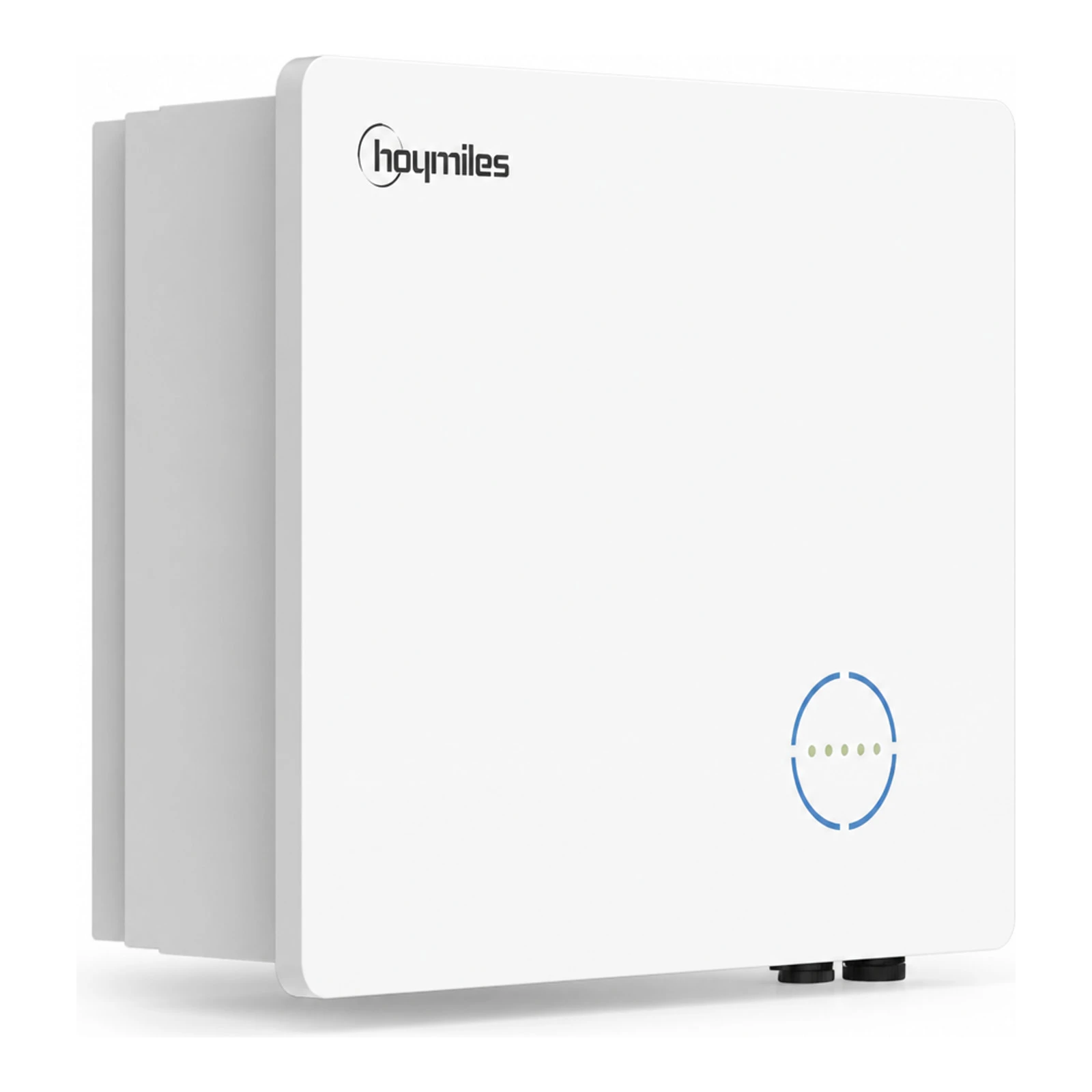

Hoymiles HAS-3.0LV-EUG1 Single-phase Inverter

The Hoymiles HAS-3.0LV-EUG1 inverter is a single-phase retrofit On-grid/Off-grid device designed to convert existing photovoltaic installations into hybrid systems. It allows operation in self-consumption, economic, and backup power modes, and works with lithium or lead-acid batteries.

Manufacturer: Hoymiles — a specialist in microinverter and hybrid system solutions. Devices in this series offer integrated energy management (EMS) functions and remote monitoring via the S-Miles Cloud platform, allowing for optimization of energy use and real-time monitoring of system status.

Electrical and Technical Parameters

• Battery type: lithium cells / lead-acid
• Battery voltage range (V): 40–60 V
• Max. charging/discharging current: 75 A / 75 A
• Max. charging/discharging power: 3000 W / 3000 W
• Rated output power (grid): 3000 W
• Max output apparent power (VA): 3000 VA
• Max input power: 6000 W
• Nominal output voltage / range (V): 230 V, 161–276 V
• Nominal frequency: 50 / 60 Hz
• Max output current: 13.0 A
• THDi (at rated power): < 3 %
• Switching time to emergency power: < 10 ms

Mechanical and Environmental Parameters

• Dimensions (W × H × D): 502 × 461 × 202 mm
• Weight: 21 kg
• Mounting type: wall mount
• Protection class: IP65
• Operating temperature range: from -25 °C to 65 °C (above 45 °C reduction of parameters)
• Relative humidity: 0–95 %, non-condensing
• Cooling: natural convection
• Noise level: < 40 dB
