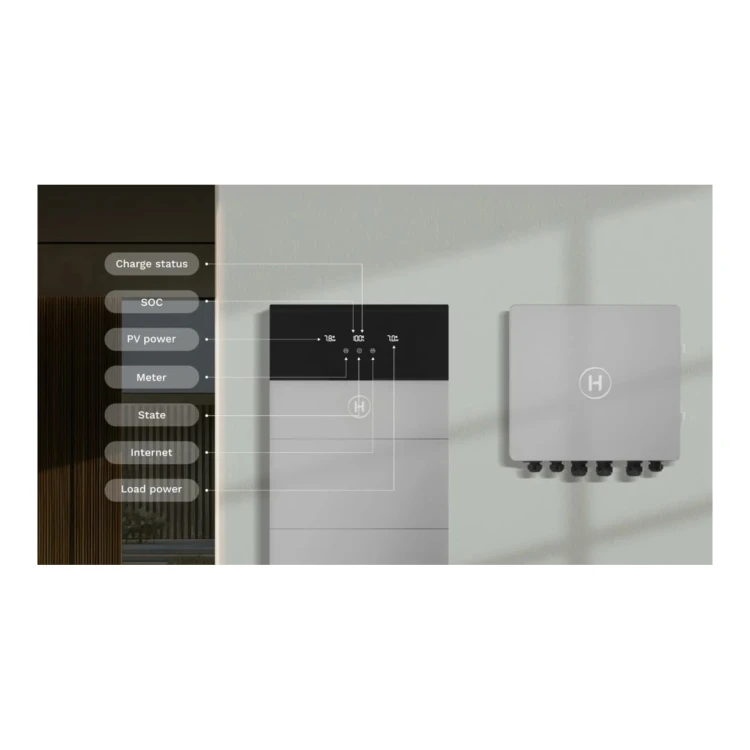

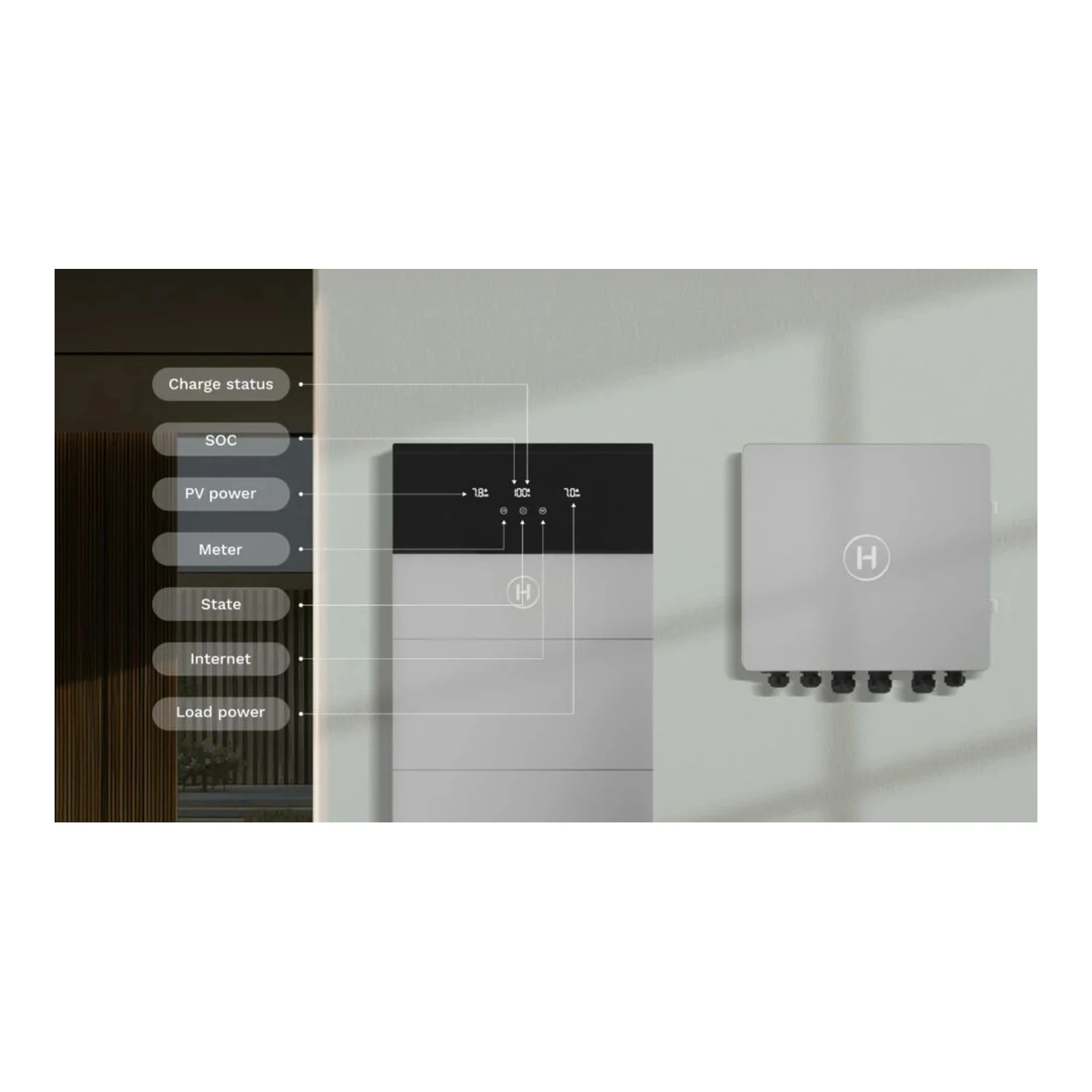

Hoymiles HIONE-16T-G3 Hybrid Inverter

The HiOne-16T-G3 is a three-phase hybrid inverter with a nominal power of 16 kW, designed for medium and large power PV installations with energy storage integration. The device supports up to 200% DC/AC oversizing, has four MPPTs (for the 16 kW variant: 4 MPPTs) and the ability to deliver increased instantaneous off-grid power.

Manufacturer: Hoymiles Power Electronics Inc. — a global manufacturer of inverters and energy storage systems, offering devices compliant with international grid and safety standards and a 10-year warranty.

Electrical Parameters

• Output Power (rated): 16,000 W
• Max. off-grid instantaneous power (off-grid, 10 s): 24,000 VA
• Max. output current: 26.7 A
• Max. on-grid apparent power (VA): 17,600 VA
• MPPT voltage range: 150–950 V
• Max. PV input voltage: 1000 V
• Recommended max. PV power: 32,000 W
• Number of MPPTs / max. number of strings: 4 / 4
• THDi (@rated): < 3%
• Power factor: >0.99 (0.8 leading–0.8 lagging)

Mechanical Parameters

• Dimensions (W × H × D): 620 × 360 × 255 mm
• Weight: 31 kg
• Protection class: IP66
• Cooling: natural convection / intelligent air cooling
• Operating temperature range: -30 °C to +65 °C (above 45 °C with derating)
• Installation: wall-mounted or standing
