Huawei // Wind speed sensor for Soluzione weather station. 24-month warranty. Accessories for Huawei Smartlogger (SET WITH M12 8Pin M)

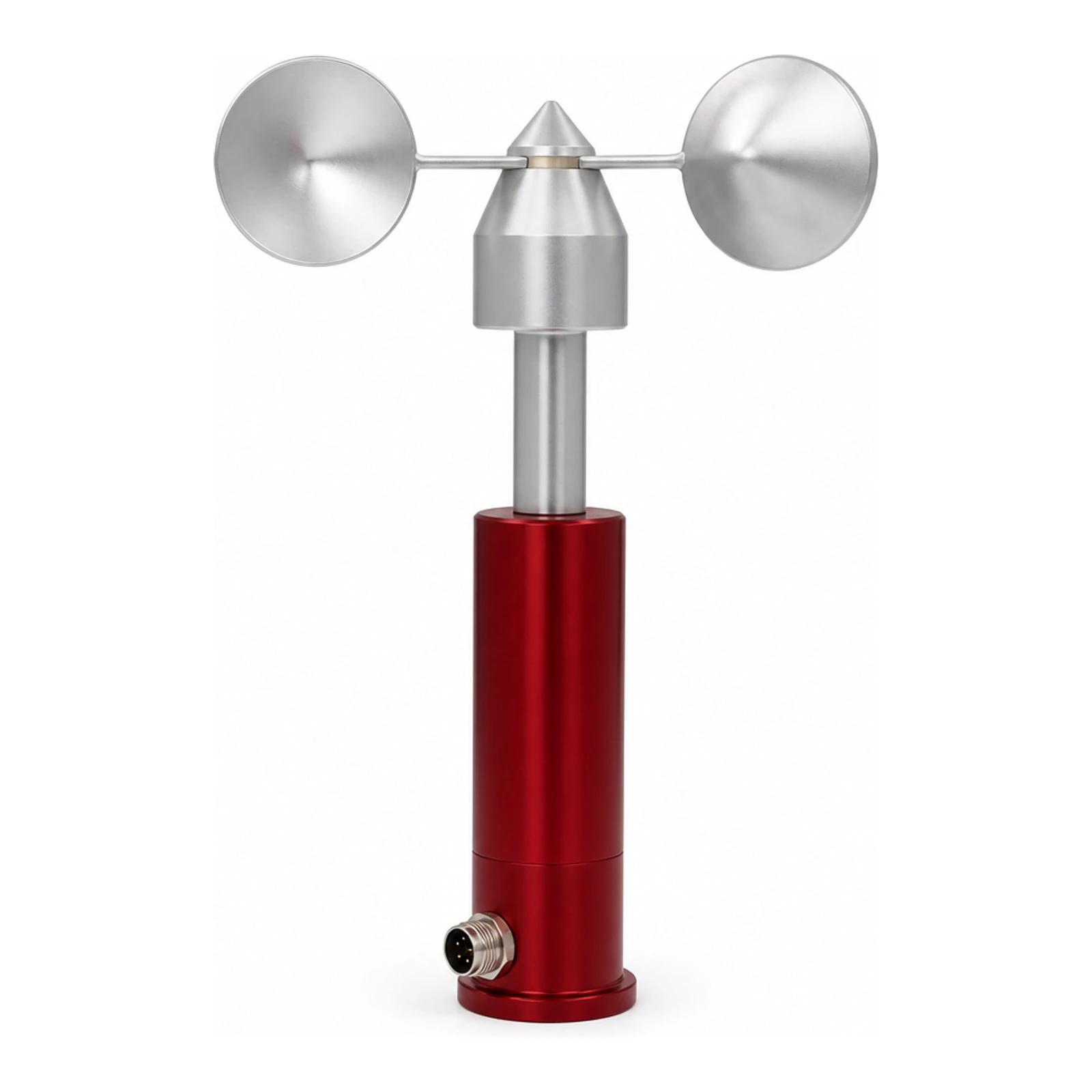

WindMeter is a digital anemometer designed for measuring wind speed and direction as well as internal temperature, with RS485 Modbus RTU serial output. The device measures wind speed in the range of 0 ÷ 50 m/s (0 ÷ 180 km/h) and offers averaging functions and vector signal processing, making it suitable for environmental monitoring, wind resource assessments, and meteorological systems.

Manufacturer information

The manufacturer of the device is Soluzione Solare (Italy). The company has an ISO 9001 quality management system certification. The manufacturer provides devices compatible with the LUFFT series – WS 200 and offers individual calibration according to IEC 61400-12-1 and, upon request, MEASNET calibration.

Electrical and technical parameters

• Wind speed range: 0 ÷ 50 m/s (0 ÷ 180 km/h)
• Internal temperature: -30 ÷ +85 °C
• Speed accuracy: ±3% (Measnet calibration)
• Resolution: ≈ 0.5 m/s
• Detection threshold: 0.3 ÷ 0.5 m/s
• Power supply: 5 ÷ 40 Vdc or 9 ÷ 28 Vac; protection against reverse polarity and overvoltage
• Power consumption: < 1 W (overall); < 500 mW (without heater)
• Communication interface: serial RS485 Modbus RTU
• Vanemeter read address: 258
• Electronics protection class: IP65 (electronic circuit encapsulated)

Mechanical parameters

• Rotor diameter: Ø 166 mm
• Body diameter: Ø 44 mm (outer), Ø 36 mm (inner)
• Height: 223 mm
• Mounting (clamp / pipe): 20 ÷ 36 mm diameter
• Cable length: 3 m, 4-wire
• Connectors: standalone M8 4-pin M; with Vanemeter set M12 8-pin M
• Materials: aluminum cups; anodized aluminum body; stainless steel screws (AISI 306)
• Weight: 300 g
• Operating humidity: 0 ÷ 95% RH
• Options: anti-icing heater with temperature regulation
