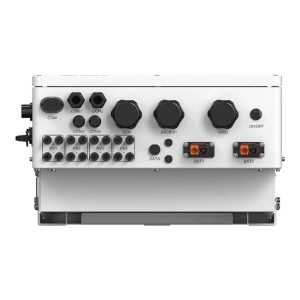

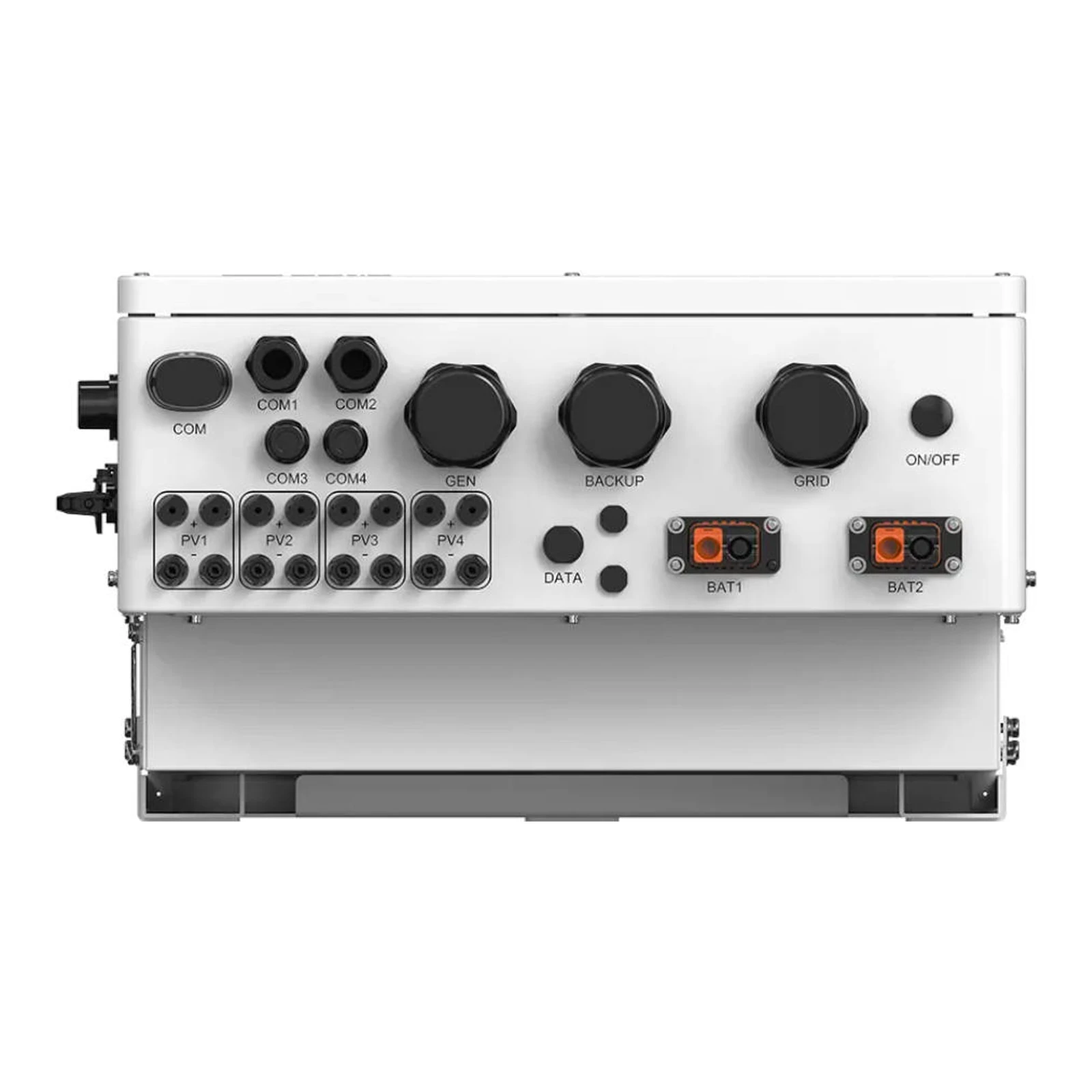

Hybrid Inverter S6-EH3P30K-H 30 kW 3F Solis

S6-EH3P30K-H is a three-phase hybrid inverter with a rated power of 30 kW designed for photovoltaic systems with energy storage. The device supports the connection of photovoltaics and high-voltage batteries, providing backup functionality and modes for managing consumption and generators.

Manufacturer: Solis (Ginlong Technologies Co., Ltd.) offers Solis inverter lines optimized for energy storage and compatibility with high-voltage lithium batteries. Devices in this series feature high efficiency, advanced communication functions (CAN/RS485, Ethernet, optionally Wi-Fi and Cellular), and compliance with network standards.

Electrical Parameters

• Rated Power (AC): 30 kW
• Maximum Apparent Power (AC): 30 kVA
• Grid Voltage (output): 3/N/PE, 220 V / 380 V
• Rated Frequency: 50 Hz / 60 Hz
• Rated Output Current: 45.6 A / 43.3 A
• Max. PV Input Current: 3 × 40 A
• MPPT Range: 150 - 850 V
• Number of MPPT / Max. Number of Strings: 3 / 6
• Battery Voltage Range: 150 - 800 V
• Max. Battery Charging/Discharging Power: 33 kW

Mechanical Parameters

• Dimensions (W×H×D): 530 × 880 × 290 mm
• Weight: 73 kg
• Protection Class: IP66
• Topology: transformerless
• Operating Temperature: -25 °C to +60 °C
• Cooling: intelligent, redundant fan cooling
