Description

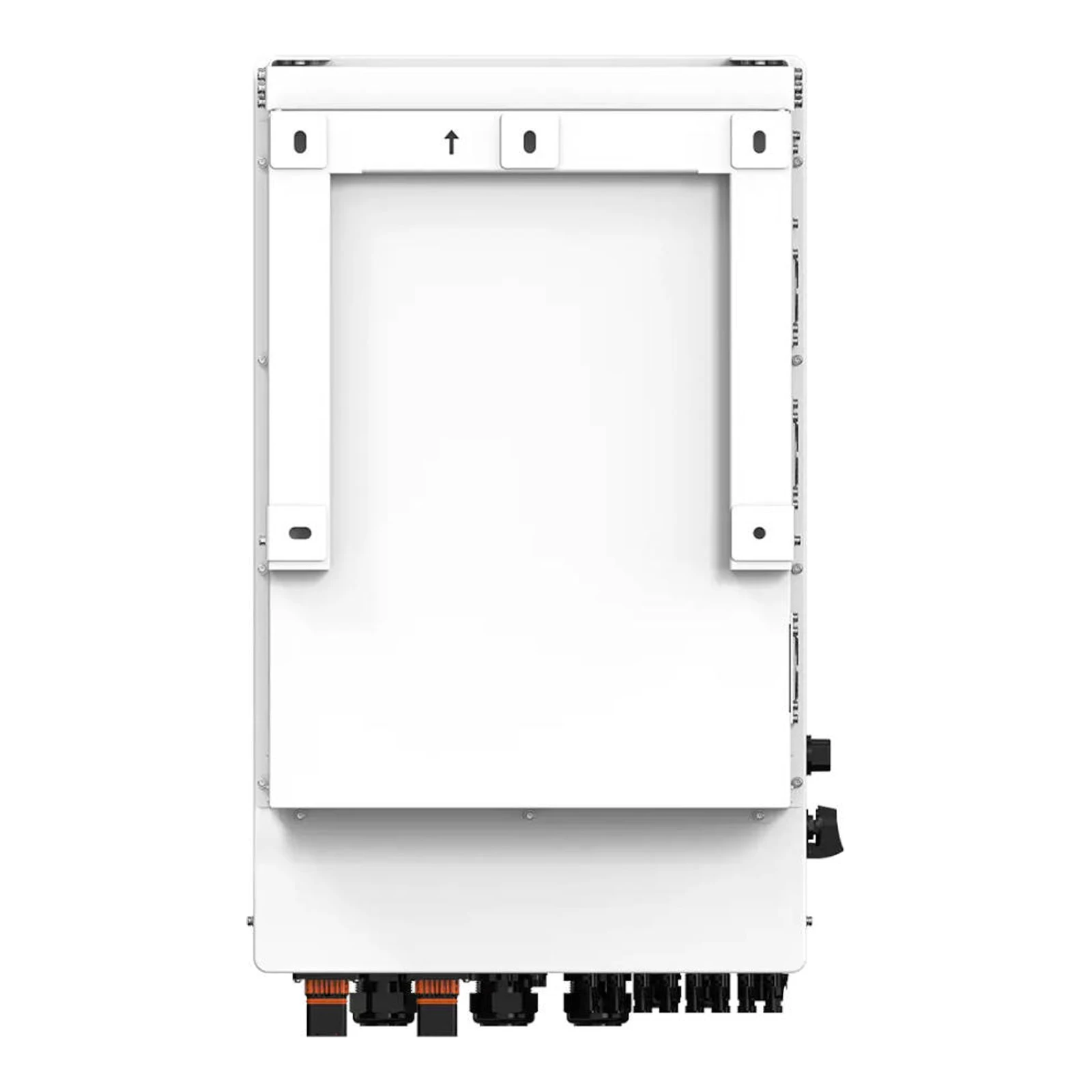

Hybrid Inverter S6-EH3P50K-H 50 kW is a three-phase energy storage inverter designed for use with high-voltage lithium batteries and large PV installations. The device supports backup mode, provides short-term overload of 160% for 2 s, and allows battery charging from photovoltaic panels and from the grid/generator.
The manufacturer of the device is Ginlong Technologies (brand Solis) — a company specializing in photovoltaic inverters and energy storage solutions. Solis devices are designed in accordance with international safety and grid compatibility standards and offer remote monitoring and software updates.
Main Electrical Parameters
- Rated Power (AC): 50.0 kW
- Maximum Apparent Power (AC): 50.0 kVA
- Max. Battery Charging/Discharging Power: 55 kW
- Battery Voltage Range: 150 - 800 V
- Max. Charging/Discharging Current: 70 A × 2 (parallel input capability 140 A)
- Recommended Max. PV Field Size: 100 kW (max. usable PV power: 96 kW)
- Max. DC Input Voltage: 1000 V; MPPT: 150 - 850 V
- Number of MPPT / Max. Strings at Input: 4 / 8
- Rated Grid Voltage: 3/N/PE, 230 V / 400 V (also 220 V / 380 V supported)
- Rated Grid Frequency: 50 Hz / 60 Hz; Rated Output Current: 76 A / 72.2 A
- Power Factor: > 0.99 (0.8 leading - 0.8 lagging); THDi: < 3%
- Overload Capability (backup): 160% of rated power for 2 s (1.6× rated power)
- Backup Switching Time: < 10 ms
- Max Efficiency: 97.8% (EU: 97.4%)
Mechanical Parameters and Additional Features
- Dimensions (W × H × D): 530 × 880 × 290 mm
- Weight: 73 kg
- Protection Class: IP66
- Operating Temperature: -25 °C to +60 °C
- Self-Power (night): < 35 W
- Cooling: Intelligent fan cooling
- Topology: Transformerless
- Connections: PV: MC4 quick connection plug; Battery: terminal connector; AC: terminal block
- Communication: CAN, RS485, Ethernet; optionally Wi-Fi, Cellular, LAN
- Protection and Safety Features: integrated DC switch, reverse polarity protection, overload protection, short circuit protection, DC Type II / AC Type II surge protection; integrated AFCI 2.0 optionally
