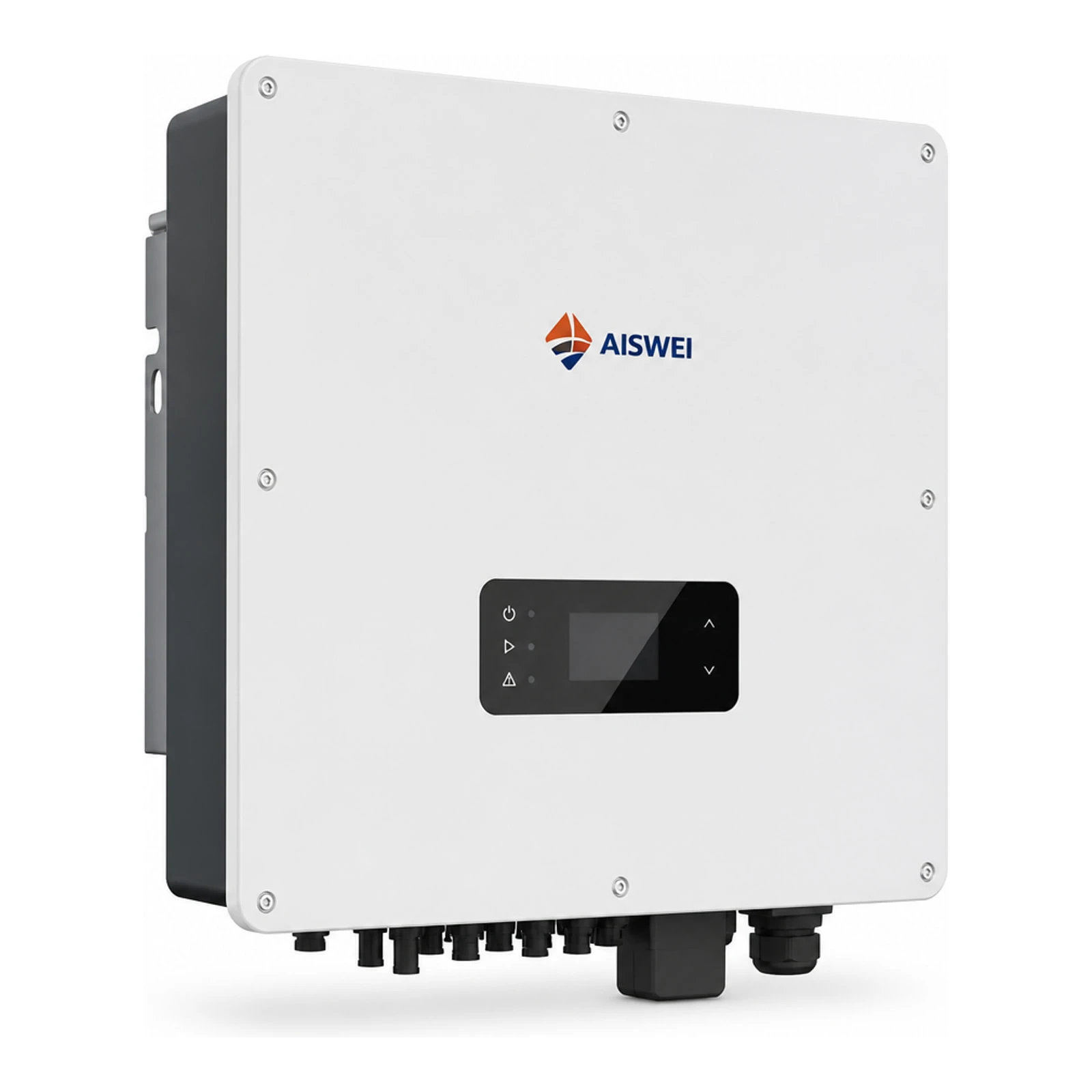

ASW025K-TH (3-Phase Hybrid Inverter, 25 kW)
Solplanet ASW025K-TH is a three-phase hybrid inverter of high power with energy storage and EPS management functions. The device offers the possibility of connecting large photovoltaic fields thanks to four MPPTs, support for working with high-voltage LiFePO4 batteries, and advanced protective and communication features.

Manufacturer: AISWEI / Solplanet — an international supplier of PV and ESS solutions, offering inverters compliant with global standards, with monitoring systems and extensive certification support.

Selected Electrical Parameters

• Max. PV Field Power: 50 000 Wp
• Max. DC Input Voltage: 1000 V
• MPPT Range: 150 V – 950 V
• Minimum Voltage / Start Voltage: 95 V / 180 V
• Number of MPPT: 4
• Max. Input Current per MPPT / Max. Power per MPPT: 40 A / 25 000 W
• Battery Voltage Range: 120 V – 800 V
• Max. Charging Power from PV and AC: 50 000 W (PV and AC combined), max. AC charging power: 25 000 W
• Max. Discharging Power: 25 000 W; max. charging/discharging current: 50 A / 100 A
• EPS (Emergency Output): rated power 25 000 VA, continuous max power 25 000 VA, switching < 10 ms

Mechanical Parameters

• Dimensions (W x H x D): 769 x 491 x 285 mm
• Weight: 58.0 kg
• Protection Degree: IP66
• Cooling: Smart cooling / active cooling
• Communication Interfaces: RS485, LAN, WLAN (dongle), CAN to BMS
