Hybrid Inverter Solplanet // ASW12kH-T2 Aiswei ASW12KH-T2_AFCI

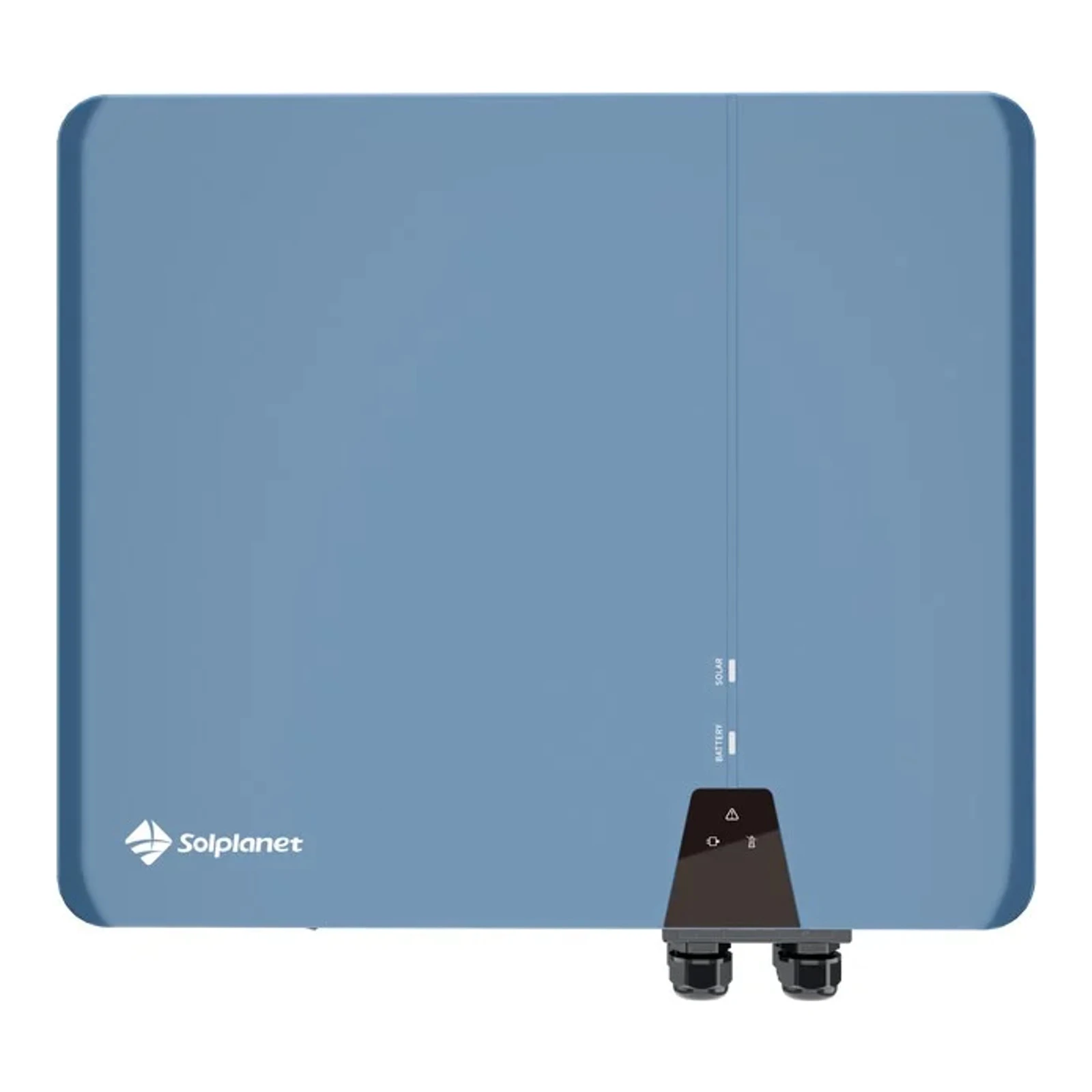

Hybrid Inverter ASW12kH-T2 (3-phase, 12 kW) — a three-phase hybrid inverter designed for residential and commercial applications, supporting 2 MPPTs, working with high-voltage LiFePO4 batteries. It offers UPS/EPS functions, advanced battery charging management, and network communication for monitoring and control.

Manufacturer:Solplanet (AISWEI). AISWEI is a global company based in Shanghai, specializing in the design and production of photovoltaic devices and energy storage systems, providing products compliant with international standards and certifications.

Key Electrical Parameters and Functions

• Max. PV installation power: 18 000 Wp
• Max. PV input voltage: 1 100 V
• MPP voltage range / nominal voltage: 150 V – 950 V / 630 V
• Minimum start voltage: 60 V / start 180 V
• Battery input (HV): 120 V – 600 V
• Max. charging / discharging power: up to 12 000 W (depending on the 12 kW model)
• Apparent power / active power (AC): 12 000 VA / 12 000 W
• Max. power drawn from the grid (AC input): 24 000 W (max. permissible parameters according to the table)
• MPPT efficiency / efficiency: MPPT 99.9% / Euro 97.9% – 98.4% (depending on variant)
• Communication: RS485, Wi-Fi (stick), LAN

Mechanical Parameters

• Dimensions (S × W × G): 545 mm × 465 mm × 205 mm
• Weight: 24.5 kg
• Protection class: IP66
• Cooling: natural convection
• Operating temperature range: -25 °C … +60 °C
