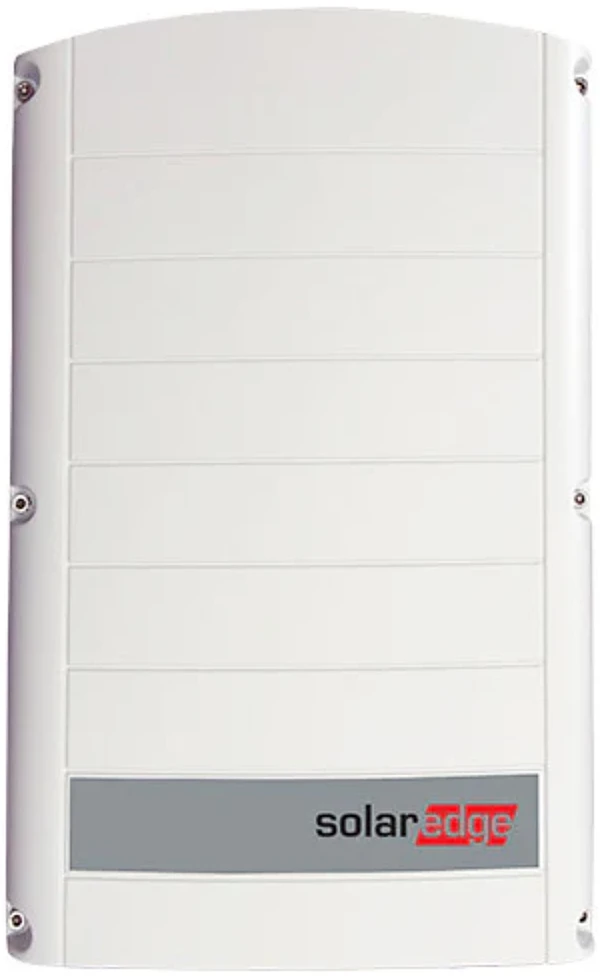

Inverter - SOLAREDGE - SE10.0K - RW0TEBEN4
Product code: ME5304_GB
The SolarEdge SE10.0K three-phase inverter is a modern unit designed to work with SolarEdge power optimisers. It features high efficiency, quiet operation with no external fan, and both wired and wireless connectivity, making it an excellent choice for residential and commercial installations.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping & Returns
Master Energy | Master Investment Sp. z o.o.
1. Right of Return (14 Days)
Individual consumers (B2C) have the right to withdraw from the contract and return purchased items within 14 calendar days from delivery without stating a reason.
2. How to submit a return or claim?
- 📧 E-mail: bok@masterenergy.eu
- 📞 Phone: +48 884 570 201
- 🏢 Registered Address: Master Investment Sp. z o.o., Rondo ONZ 1, 00-124 Warsaw, Poland (VAT ID: PL7010345632)
3. Complete terms and conditions
Detailed freight information, pallet shipping methods, and B2B commercial terms are available at our dedicated information page:
Payment methods
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Product features
Inverter parameters
- Weight [kg] 16.4
- Manufacturer code SE10K-RW0TEBEN4
- Dimensions 191 x 315 x 540 mm
- Weight 11-20 kg
- Inverter power 5-10 kW
- Number of phases Three-phase
- Power [kW] 10
Description
The SolarEdge SE10.0K three-phase inverter is a cutting-edge device designed to work with SolarEdge power optimizers. It is characterised by high efficiency, silent operation without an external fan and support for wired and wireless communication, making it an excellent choice for residential and commercial installations.
SolarEdge is a globally recognised manufacturer of advanced photovoltaic solutions, specialising in power optimizer technology and intelligent energy management systems. The company focuses on maximising PV system performance and simplifying installation monitoring.
Electrical parameters
- Rated AC power: 10,000 VA
- Maximum AC power: 10,000 VA
- AC output voltage (nominal): 230 / 400 V
- AC output voltage range (L-N): 184 – 264.5 V
- AC frequency: 50 / 60 Hz ±5 Hz
- Maximum current per phase: 16 A
- Nominal DC input voltage: 750 V
- Maximum DC input voltage: 900 V
- Maximum DC input current: 16.5 A
- Maximum efficiency: 98%
Mechanical parameters
- Dimensions (H x W x D): 540 x 315 x 191 mm
- Weight: 16.4 kg
- Operating temperature range: -40°C to +60°C
- Cooling: internal, no external fan
- Noise level: < 40 dBA
- Ingress protection rating: IP65 (indoor and outdoor installation)
- DC input connectors: 2 pairs MC4
- AC output connector: cable gland 15–21 mm
- Installation: wall mount bracket included
