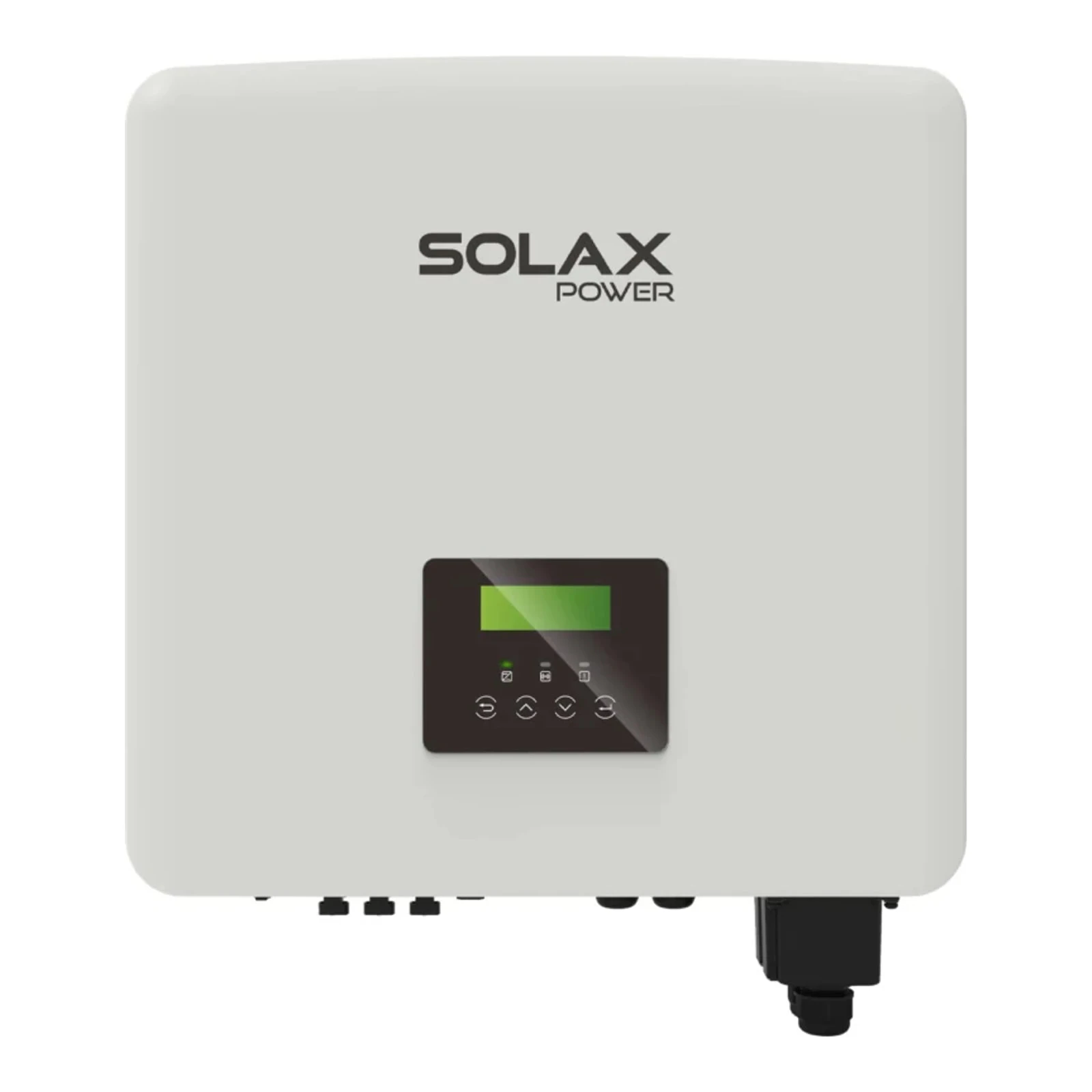

Inverter – SOLAX – X3-Hybrid-6.0-D Wi-Fi + Lan – hybrid – HV

The SOLAX X3-Hybrid-6.0-D hybrid inverter is a three-phase inverter from the X3-Hybrid G4 series with a rated power of 6.0 kW, designed to work with energy storage systems and photovoltaic installations. The "D" version indicates a design with a built-in DC switch and a standard current sensor (CT). The device offers emergency power supply (UPS) functions in residential and commercial installations, providing fast load switching when switching to off-grid mode.

Information about the manufacturer

The manufacturer of the device is Solax Power — a provider of energy storage solutions and photovoltaic inverters. The X-Hybrid G4 series is an extension of Solax's hybrid inverter line, designed for integration with batteries and additional monitoring systems, offering communication options (WiFi, LAN, 4G) and compatibility with external mateboxes for installation integration.

Main electrical parameters and functions

• Rated power (AC): 6.0 kW (X3-Hybrid-6.0-D variant)
• Operating mode: hybrid, three-phase
• DC switch: built-in (D version)
• CT (current sensor): included as standard (CT in the inverter)
• UPS/emergency power function: fast load switching — the inverter is designed to protect devices from power outages
• Monitoring options: Pocket WiFi Plus, Pocket LAN, Pocket 4G (optional); basic monitoring support available
• Compatible batteries (optional): the system supports T series batteries (e.g. T30, T58) with the possibility of 2–4 modules (optional battery configurations)
• Full off-grid load: version D does not have the full load function for all circuits (emergency loads must be separated)

Mechanical parameters

• Dimensions (mm): 560 x 625 x 322
• Gross weight (kg): 34
• Net weight (kg): 30
• Design: wall-mounted enclosure, D version with built-in DC switch
• Packaging and labeling: packaging of the X3-Hybrid G4 series — marked on the box version (fifth character of the SN number = "D" for version D)
