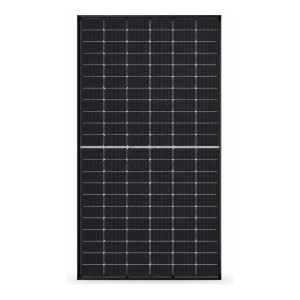

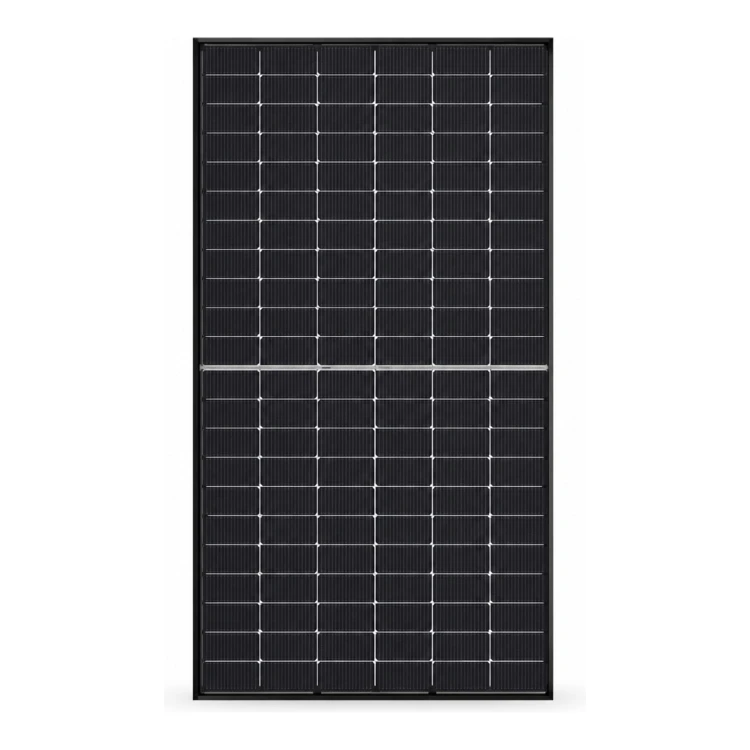

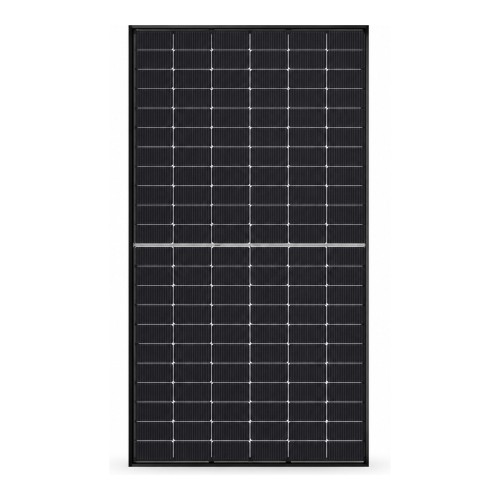

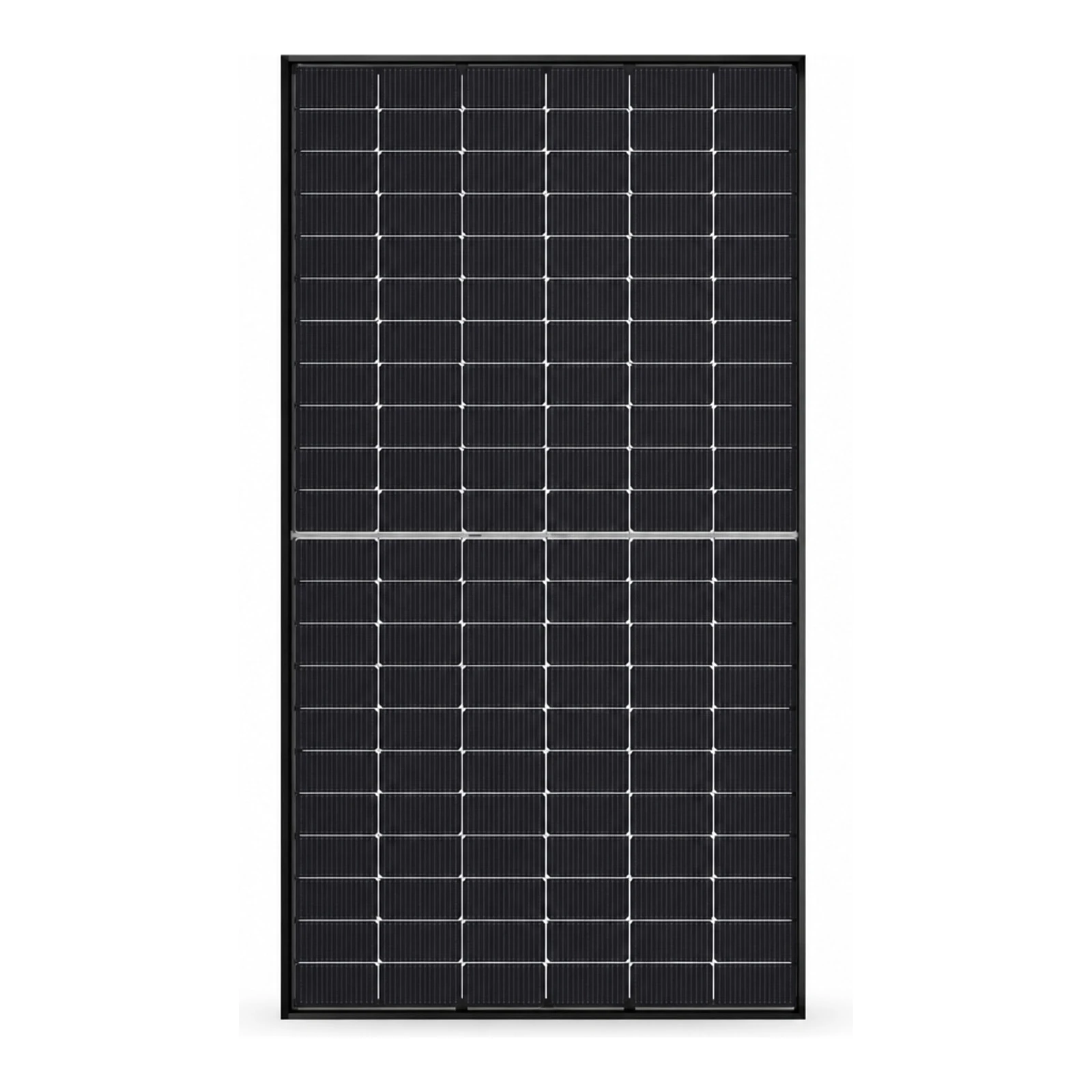

Jinko Solar 490W Black Frame Photovoltaic Panel

Jinko Solar 490W (JKM490N-60HL4-V) is a single-junction monocrystalline N-type module with a black frame, intended for ground and rooftop installations. The module offers a maximum power of 490 Wp, a positive power tolerance of 0~+3%, and high efficiency, resulting in better energy production with limited space.

Manufacturer Information

Jinko Solar is a global manufacturer of photovoltaic modules with a strong market position. The company implements management systems compliant with ISO9001, ISO14001, and ISO45001 and produces modules in accordance with IEC61215 and IEC61730 standards. The Tiger Neo N-type model (60HL4 series) utilizes advanced technologies to enhance performance and durability, such as SMBB and Hot 2.0.

Electrical / Technical Parameters

• Maximum Power (Pmax): 490 Wp
• Voltage at Pmax (Vmp): 34.63 V
• Current at Pmax (Imp): 14.17 A
• Open Circuit Voltage (Voc): 41.99 V
• Short Circuit Current (Isc): 14.86 A
• Module Efficiency (STC): 22.71 %
• Power Tolerance: 0 ~ +3 %
• Temperature Coefficient of Power (Pmax): -0.29 %/°C
• Temperature Coefficient Voc: -0.25 %/°C
• Temperature Coefficient Isc: 0.045 %/°C
• Nominal Operating Cell Temperature (NOCT): 45 ± 2 °C
• Maximum System Voltage: 1000/1500 V DC (depending on version / IEC standards)
• Maximum Series Fuse Rating: 25 A

Mechanical Parameters

• Cell Type: N-type monocrystalline
• Number of Cells: 120 (6 × 20)
• Dimensions: 1906 × 1134 × 30 mm
• Weight: 22.5 kg (49.60 lbs)
• Front Glass: 3.2 mm, anti-reflective coating, low iron tempered glass
• Frame: Anodized aluminum alloy
• Junction Box: IP68
• Output Cables: 1 × 4.0 mm2; (+): 400 mm, (-): 200 mm (length customization available)
• Mechanical Resistance: Certified for wind load 2400 Pa and snow load 5400 Pa
