KStar Energy Storage BC100DE

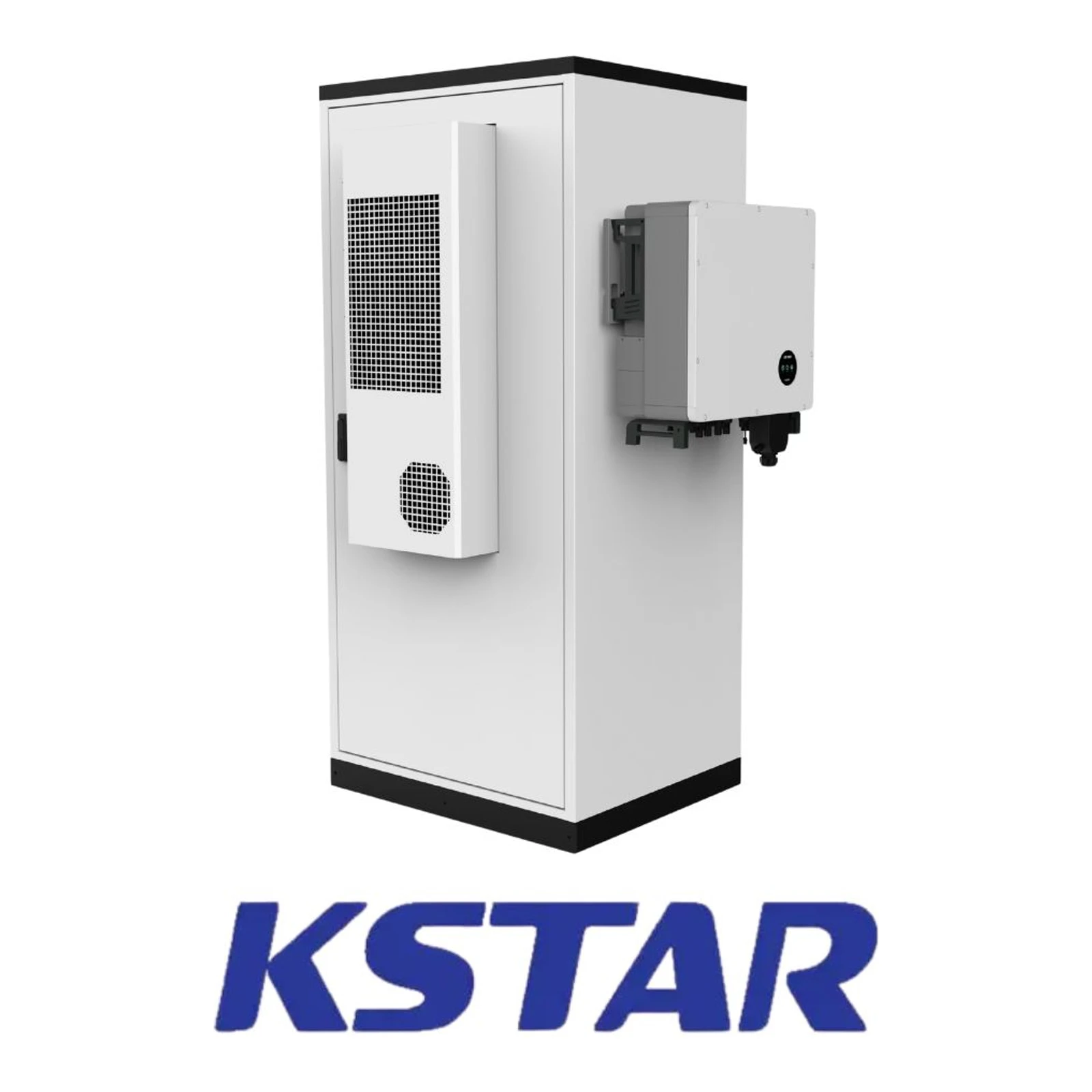

The BC100DE battery cabinet (designated in the documentation as BC100D / BC100DE) is an outdoor, prefabricated energy storage system based on LFP cells with a total capacity of 102.4 kWh. The design is intended for outdoor installations, equipped with safety systems, air conditioning, and an integrated BMS/EMS.

Manufacturer: KSTAR — in the manufacturer's documentation, the model BC100D/BC100DE is presented as a factory-prepared battery cabinet based on 5.12 kWh modules from CATL (LFP cells). KSTAR emphasizes solutions related to safety, temperature control, and compliance with industrial standards.

Electrical and Battery Parameters

• Battery type: LFP (LiFePO4)
• Battery module capacity: 5.12 kWh
• Number of modules: 10*2 (total 20 modules)
• Total capacity: 102.4 kWh
• Nominal voltage: 512 V
• Operating voltage range: 448 V ~ 565 V
• Max. charging/discharging rate: 0.5C
• Depth of discharge (DoD): 90%

Mechanical and Environmental Parameters

• Dimensions (WxDxH): 1100 × 1100 × 2380 mm
• Weight: <1.5 T
• Installation location: Outdoor
• Protection class: IP54
• Corrosion resistance level: C4
• Humidity range: 5% ~ 95% (without condensation)
• Operating temperature range: -30 °C ~ +50 °C
• Maximum operating height: 4000 m (above 3000 m with derating)
• Communication ports: Ethernet; CAN
• Communication protocol: CAN; MODBUS TCP/IP
• Cooling method: air conditioner
