LEMET Vertical Standing Buffer Tank 300L without Coil 16.300BN-0

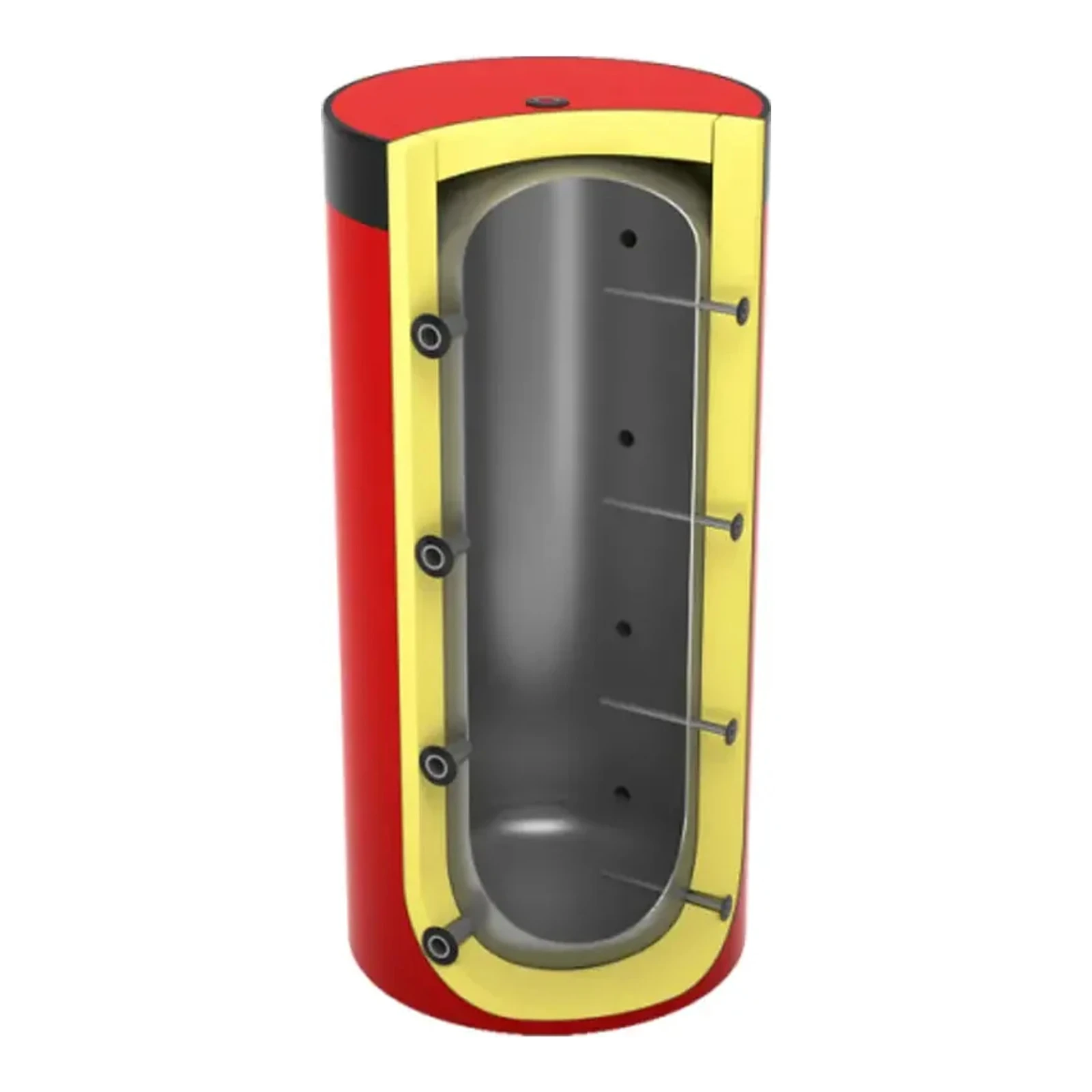

LEMET vertical standing buffer tank 300 L (version without coil) designed for storing hot boiler water and cooperating with heating installations. The tank is available in an insulated version with polyurethane foam (PUR) and optionally with a removable aesthetic cover in three colours.

Manufacturer: LEMET – a specialist in the production of devices and equipment for heating installations. The company supplies buffer tanks in versions with and without coils, with polyurethane insulation and aesthetic covers; the products feature a cylindrical construction, standard connection ports, and declared energy class.

Technical Parameters

• Nominal capacity: 300 L
• Maximum operating temperature: 95 °C
• Maximum working pressure: 3 bar
• Insulation: PUR (polyurethane foam)
• Energy class: C
• Thermometer entry (marked T): G 1/2" W/F
• Connection ports (marked KP): G 6/4" W/F
• Tank venting (marked OZ): G 6/4" W/F

Mechanical Parameters

• Weight: 85 kg
• Dimensions (designations according to the card): A = 1320 mm, B = 1280 mm, C = 650 mm, D = 650 mm, E = 750 mm, F = 220 mm, G = 220 mm, H = 750 mm, I = 1330 mm
• Construction: vertical tank, steel, without coil
• Aesthetic cover: option to use a fabric cover (colours: grey, red, dark blue)
• Installation: standing, side connections according to the markings on the diagram
