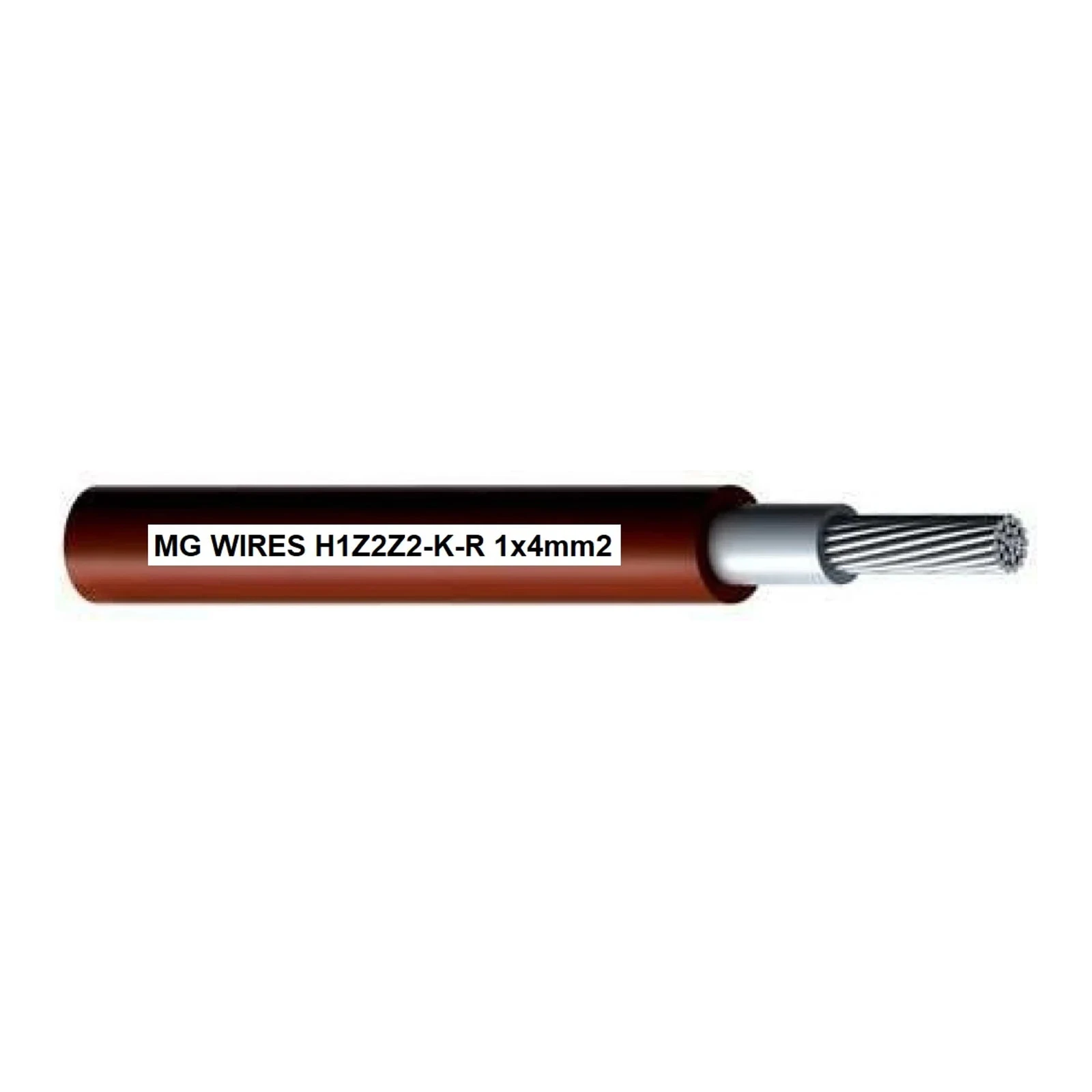

Photovoltaic Cable // MG Wires // 1x4mm2, 0.6/1kV red H1Z2Z2-K-R-4mm2 RD, packaging 100m

MG Wires H1Z2Z2-K 1x4.0 mm² (red colour) is a photovoltaic cable designed for module connections and connections to the inverter. The cable offers the required features for PV installations: resistance to UV, ozone, and atmospheric factors, as well as flame resistance.

Manufacturer: MG WIRES Sp. z o.o. Sp.K., a company producing cables compliant with the standard PN-EN 50618:2015-03. The manufacturer's documentation indicates a service life of 25 years and compliance with requirements for resistance to external conditions and flame tests (DIN EN 60332-1).

Electrical and operational parameters

• Rated voltage: 0.6/1 kV AC
• Operating voltage (DC): 1.5 kV DC according to EN 50618
• Insulation resistance: min. 580 MΩ·km at 20°C
• Maximum conductor operating temperature: +90°C (short-term +120°C for up to 20000 h)
• Minimum ambient temperature for permanent installation: -40°C
• Minimum laying temperature of cables: -25°C
• Test voltage (50 Hz): 4000 V
• Resistance: UV, ozone, atmospheric conditions; does not release aggressive smoke during combustion

Mechanical parameters and dimensions

• Nominal cross-section of the conductor: 4.00 mm²
• Maximum permissible wire diameter in the conductor: 0.31 mm
• Nominal insulation wall thickness: 0.7 mm
• Nominal sheath wall thickness: 0.8 mm
• Maximum outer diameter of the cable: 6.6 mm
• Sheath colour (outer sheath): red
• Insulation and sheath: cross-linked halogen-free material
• Bending radius for fixed connection: 4 x Ø of the cable
