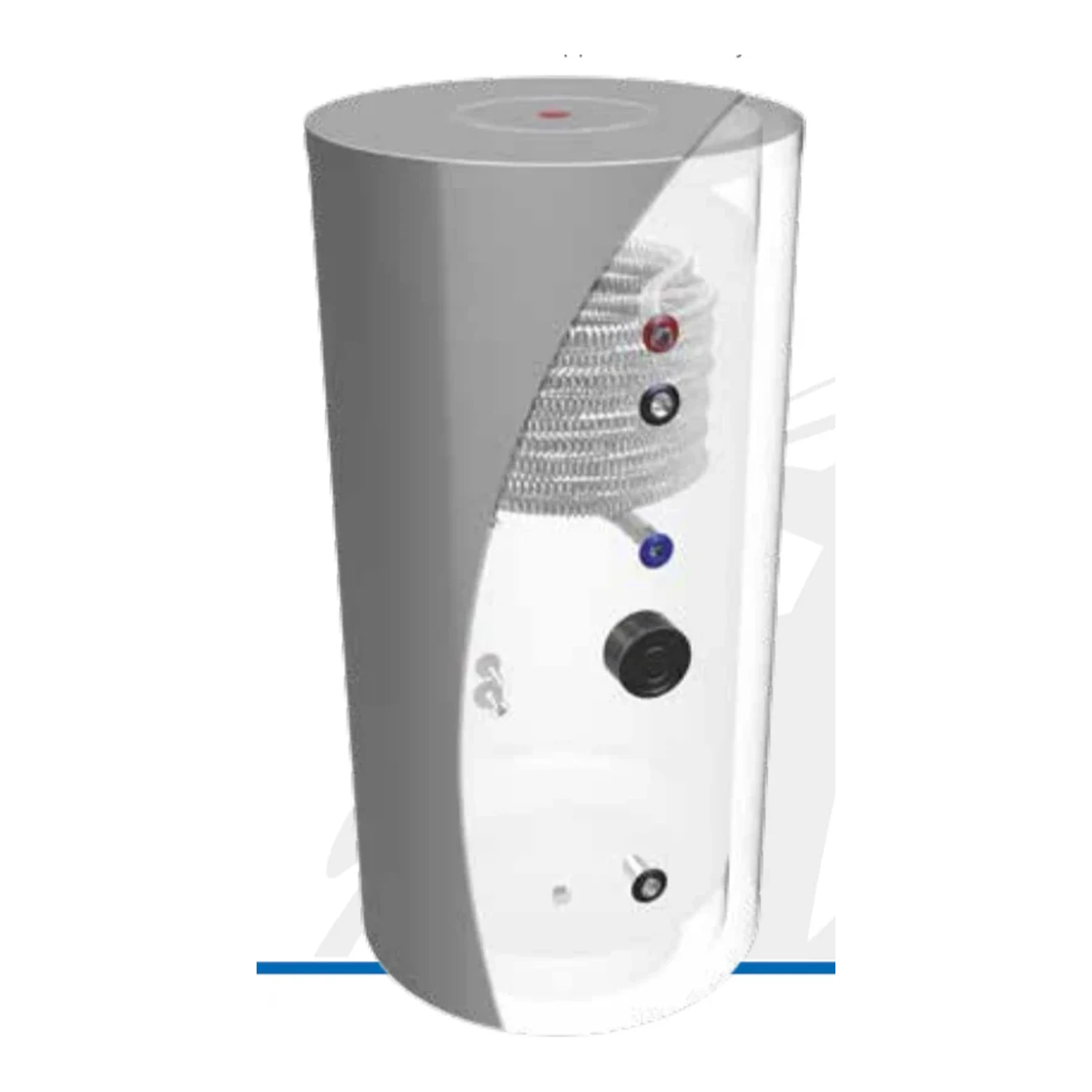

SOLITANK Vertical standing storage/exchanger CWU 245L with coil 3.83m2

SOLITANK 300 (245 L) is a vertical storage/exchanger designed for preparing domestic hot water with a capacity of 245 litres. The model is equipped with a single coil made of stainless steel AISI 316L with a heat exchange area of 3.83 m2, ensuring effective heat exchange and appropriate performance with solar systems and heat pumps.

Manufacturer: Solimpeks — a manufacturer of solar tanks and heating components. The design includes an internal exchanger made of stainless steel AISI 316L, foamed insulation, and an external coating of ST 37 steel powder-coated. Selected models are covered by a 5-year warranty.

Technical / electrical parameters

• Coil: Stainless steel AISI 316L
• Number of coil turns: 1
• Coil surface area: 3.83 m2
• Optional immersion heater: installation possible (electric heater connection 1 1/4")
• Sensor: connection 1/2"
• Air vent: 1/2"
• Safety valve: 1 1/4"

Mechanical parameters

• Product code (manufacturer): MA-0002
• Capacity: 245 l
• Height: 1770 mm
• Diameter: 542 mm
• Net weight: 85 kg
• Insulation: polyurethane 50 mm, density 40 kg/m3 (CFC-free)
• External coating of the tank: ST 37 steel powder-coated (electrostatic method)
• Hydraulic connections (according to the card): Heat outlet 1 1/4", Hot water outlet 3/4", Heat inlet 1 1/4", Cold water inlet 3/4", Cold outlet 1 1/4", electric heater 1 1/4"
