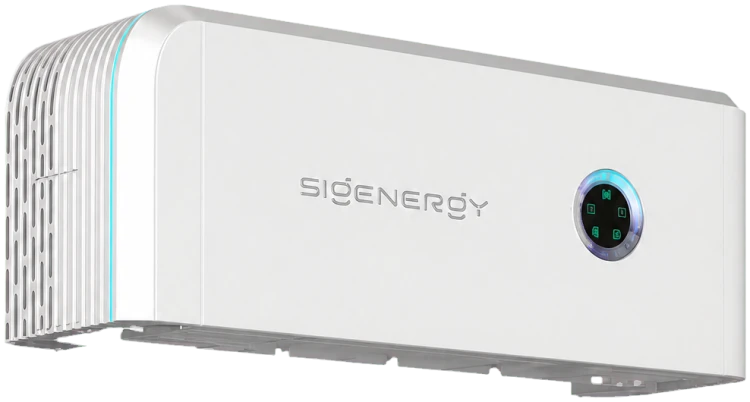

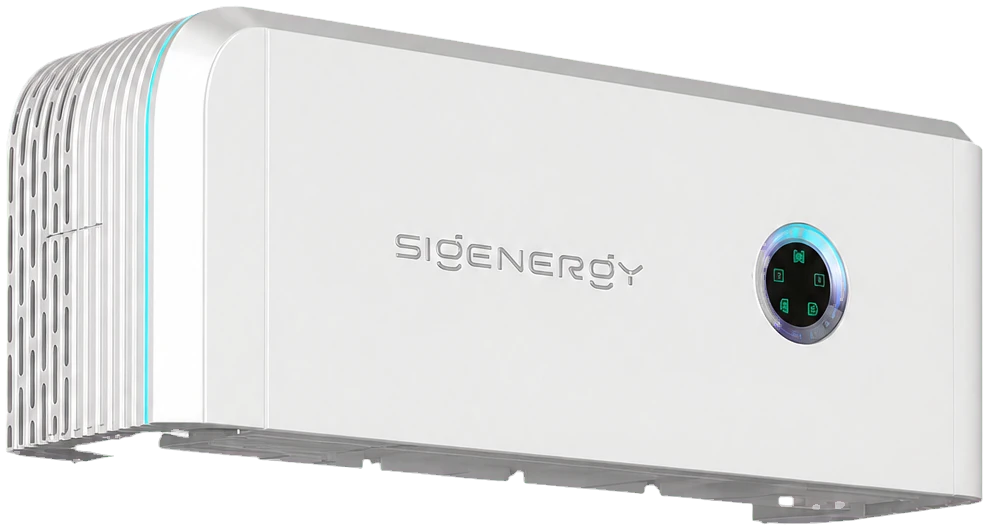

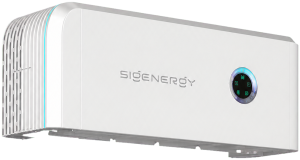

Sigenergy 10kW 3-phase hybrid inverter SigenStor EC 10.0 TP

SigenStor EC 10.0 TP is a three-phase hybrid inverter designed to work with PV systems and energy storage systems. Equipped with an integrated energy management system (EMS), it allows precise control of energy flow between PV, battery and grid. The device supports multiple MPPT trackers, enhancing energy yield under variable sunlight conditions, and the emergency mode provides a temporary output power boost up to 150%.

The inverter offers advanced protective and communication features: parameter monitoring, DC/AC protections, and the possibility of grid integration and remote supervision via WLAN, Ethernet or RS485. The robust IP66-rated enclosure and wide operating temperature range make it suitable for demanding installation conditions.

Key features

• Three-phase hybrid inverter with integrated EMS
• Support for multiple MPPT (up to 4) for improved energy harvesting
• Capability of temporary power boost up to 150% in off-grid mode
• Protective features: protection against DC reverse polarity, insulation monitoring, AC protections
• Communication: WLAN, Fast Ethernet, RS485 (optional 4G/3G/2G via CommMod)
• IP66 enclosure, wide temperature operating range
