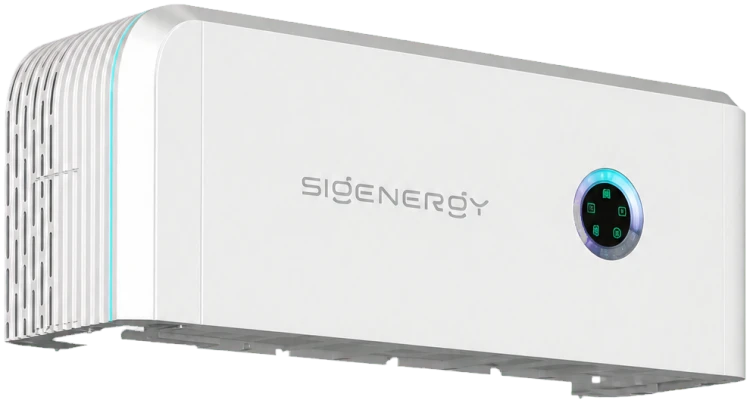

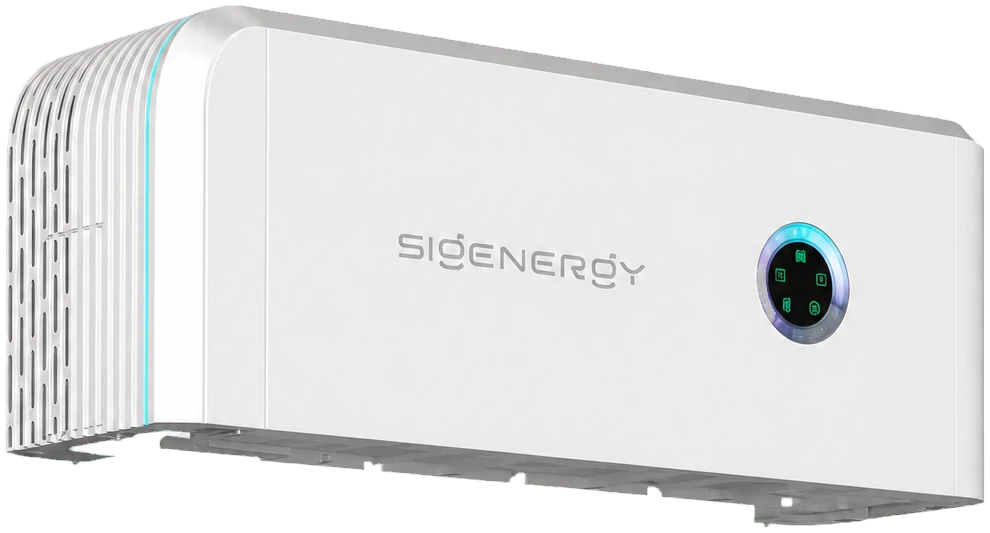

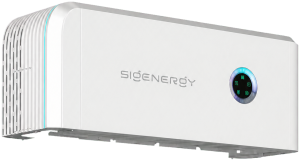

Sigenergy 25kW 3-phase hybrid inverter SigenStor EC 25.0 TP

SigenStor EC 25.0 TP hybrid inverter is an industrial-class three-phase solution designed for installations with energy storage. The device supports a rated output power of 25 kW and works with photovoltaic modules up to 40 kW maximum power; it operates at a maximum DC voltage of 1100 V and nominal DC voltage of 600 V. The inverter allows connection of SigenStor BAT battery modules (1–6 units) and offers a backup mode with short-term power peak.

The inverter enclosure provides IP66 protection, communication via WLAN/Fast Ethernet/RS485 and compatibility with the Sigen CommMod module (4G/3G/2G). The device operates within a wide temperature range from -30 °C to 60 °C and features intelligent air cooling for stable operation.

Key features

• Rated output power: 25.0 kW (three-phase)
• Max PV power up to 40 kW, max DC voltage 1100 V
• Capability to connect SigenStor BAT batteries (1–6 modules)
• IP66 protection rating and operating temp. range -30 °C to 60 °C
• Communication: WLAN / Fast Ethernet / RS485; optional Sigen CommMod
