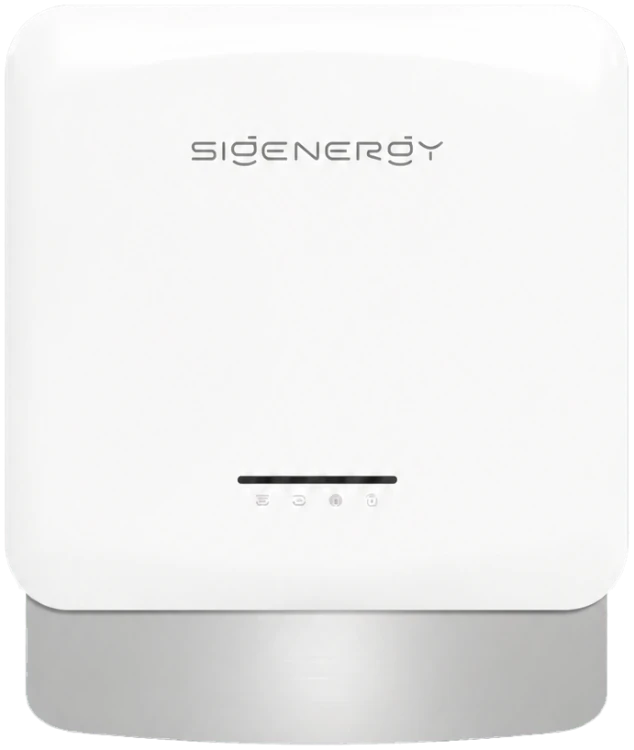

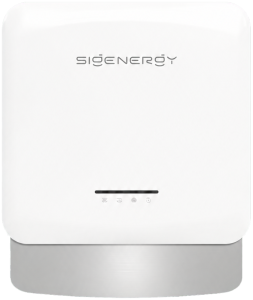

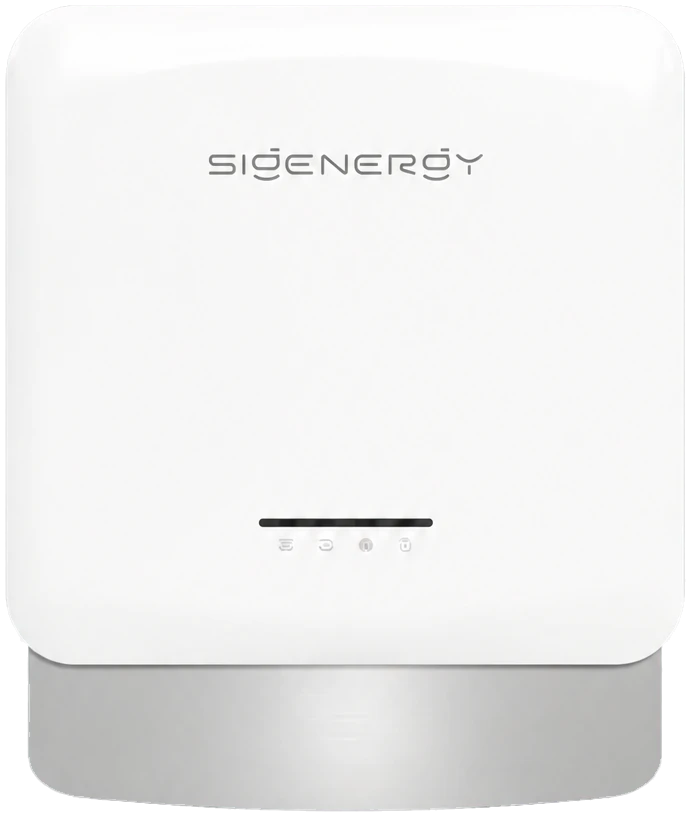

Sigenergy 3kW TP2 hybrid inverter

Sigenergy Sigen Hybrid 3.0 kW TP2 hybrid inverter is designed for photovoltaic installations with on-grid and backup power supply capability. The device combines a narrow enclosure (99 mm) and quiet operation with battery management functions (SigenStor BC and BAT), offering a rated output power of 3000 W and short-term peak power in backup mode.

The TP2 model works in a wide temperature range from -30 °C to 60 °C, features two MPPTs and advanced protections (including DC reverse polarity protection, insulation monitoring, anti-islanding). Wall mounting, natural convection cooling and WLAN/RS485 communication simplify installation and integration with the system.

Key features

• Rated output power: 3000 W
• 2 MPPT (two maximum power point trackers)
• Operating range: -30 °C to 60 °C
• Max. DC input voltage: 1100 V
• Built-in protections: insulation monitoring, surge protection and anti-islanding
• Slim enclosure (99 mm) and low noise level
