Surface-Mounted Distribution Board RH-1x18 Modules IP65 ONNLINE 1000V DC PV .18 36

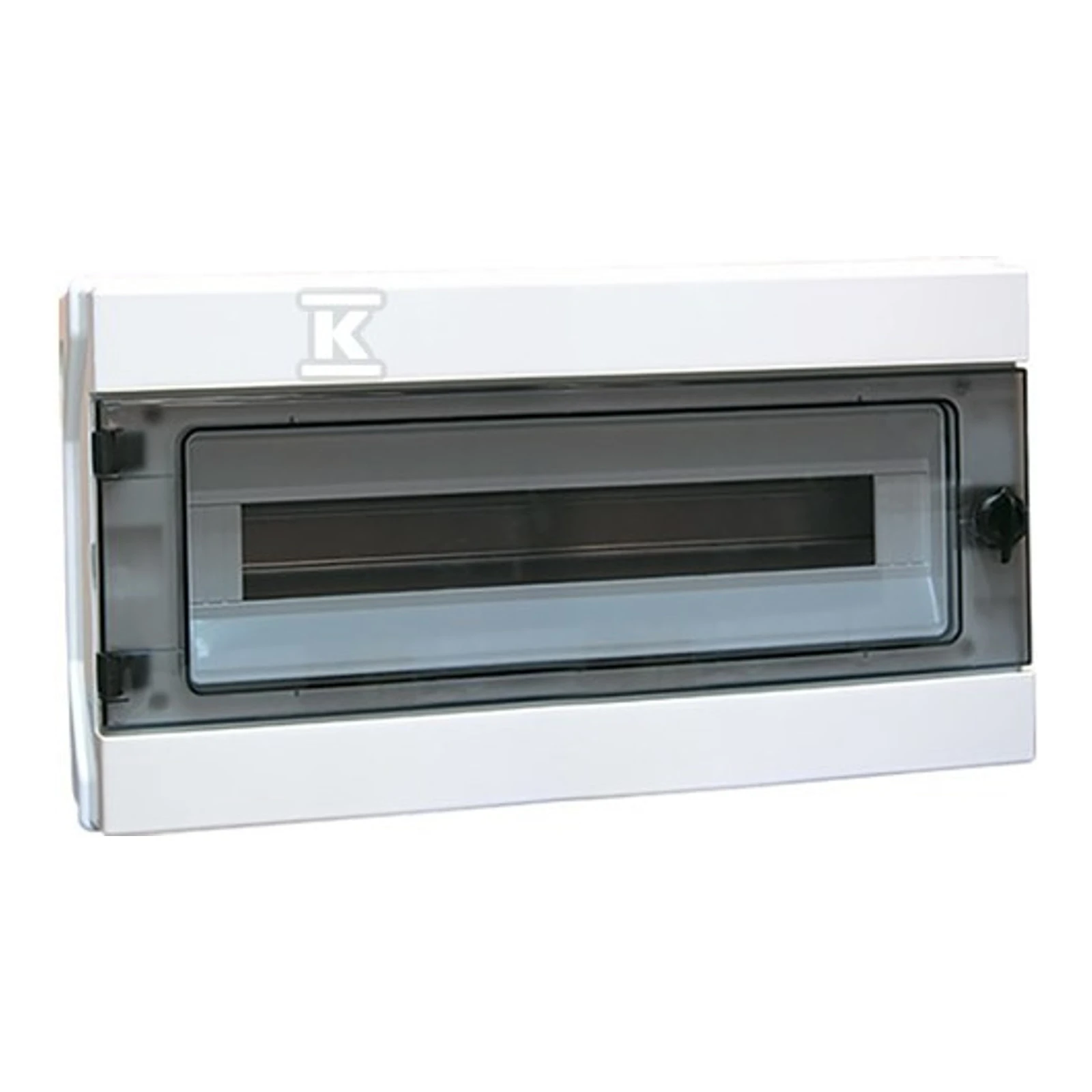

Hermetic Distribution Board RH-18 (1 x 18) is a surface-mounted modular distribution board with increased tightness (IP65), designed for mounting 18 modules in one column. It is equipped with tinted doors that open to the side and can be locked in versions marked with Z.

Manufacturer: Elektro-Plast Opatówek — a manufacturer of electrical installation equipment offering a series of NEO hermetic distribution boards. Products in this series are made of ABS/PC materials, have a TH-35 rail for mounting modular devices, and comply with the PN-EN/EN 62208 standards.

Electrical and Technical Parameters

• Nominal voltage: 230/400 V AC
• Degree of protection: IP 65
• Protection class: II
• Impact resistance: IK 07
• Maximum wire cross-section: 10 mm
• Mounting rail: TH-35 DIN rail
• Equipment: N and PE terminal strips, self-adhesive tape for labels
• Reference standards: PN-EN 62208:2006; EN 62208:2003

Mechanical Parameters

• Material: ABS / PC
• Color: white (versions with white doors are also available)
• Operating temperature: from -25 °C to +60 °C
• Temperature resistance (glow wire test): up to 960 °C (hot rod - refers to terminal-type elements)
• Device mounting possibility: devices with a depth of 68 mm and 75 mm
• Number of modules: 1 x 18
• Dimensions (A x B x C): 435 x 260 x 138 mm
• Versions and accessories: versions with a lock (Z), versions with white doors (B), metal lock (ZRH), cable entry covers OMP-18
